IMAGER ADJUSTMENT

NOTE: The following procedure is used to mechanically adjust the SmartBeam® imager (camera) ONLY after the SmartBeam® Calibration Procedure has resulted in a High Beam Camera Alignment Performance Fault - Left, Right, Top or Bottom Diagnostic Trouble Code (DTC) or a combination of any two of these faults being set. The imager bracket is assembled to the inside rear view mirror mount with three screws. The following procedure details the proper steps for indexing the imager bracket to the mirror mount to correct each fault or combination of faults. However, retrieval and erasure of the DTC to complete and verify the procedure will require the use of a diagnostic scan tool. Refer to the appropriate diagnostic procedures.







(Refer to 23 - BODY/INTERIOR/REAR VIEW MIRROR - REMOVAL)

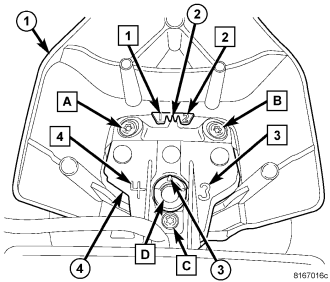

NOTE: The SmartBeam® inside rear view mirror is manufactured with both the horizontal index pointer (2) and vertical index pointer (3) located in their central or neutral positions, as shown in the illustration.



IMAGER ADJUSTMENT TABLE

High Beam Camera Alignment Performance Fault DTC
  		Loosen Screws (Boxed Letters In Graphic) - Number Of Complete Turns
  		Index Location - (Boxed Numbers In Graphic)

B16A8 - Right
  		A, B and C - 7 Turns Each
  		Horizontal 1 (Right)

B16A7 - Left
  		A, B and C - 7 Turns Each
  		Horizontal 2 (Left)

B16A9 - Top
  		A, B and C - 4 Turns Each, D - 1 Turn
  		Vertical 4 (Top)

B16AA - Bottom
  		A, B and C - 4 Turns Each, D - 1 Turn
  		Vertical 3 (Bottom)

If more than one High Beam Camera Alignment Performance Fault DTC was retrieved, the appropriate screws should be loosened and the imager bracket to mirror mount indexed both horizontally and vertically for the two faults. In this case, the total amount of available correction will be slightly diminished from that available for a single fault. However, in most cases, this action should result in a sufficient amount of correction to remedy both fault conditions.




(Refer to 23 - BODY/INTERIOR/REAR VIEW MIRROR - INSTALLATION)


(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/SMARTBEAM - STANDARD PROCEDURE - SMARTBEAM CALIBRATION)
