REMOVAL
WARNING: Refer to the applicable warnings and cautions for this system before performing the following operation (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - FRONT - WARNING) and (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - FRONT - CAUTION). Failure to follow the warnings and cautions could result in possible personal injury or death.
NOTE: Illustration shown with rear body cradle removed for clarity.
(refer to 24 - HEATING & AIR CONDITIONING/PLUMBING - FRONT - STANDARD PROCEDURE - REFRIGERANT SYSTEM RECOVERY)
(refer to 7 - COOLING - STANDARD PROCEDURE - COOLING SYSTEM DRAIN)

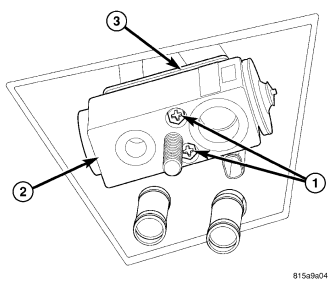

NOTE: Illustration shown with heater hoses and foam seal removed for clarity.
