HOUSING-AIR INLET

WARNING: Refer to the applicable warnings and cautions for this system before performing the following operation (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING-FRONT - WARNING) and (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING-FRONT - CAUTION). Failure to follow the warnings and cautions could result in possible personal injury or death.

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: The air inlet housing must be removed from HVAC housing and disassembled for service of the recirculation-air door.

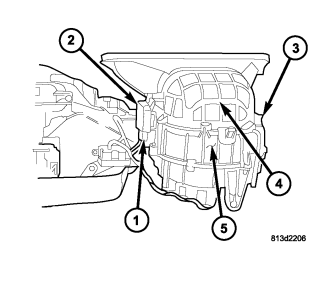

NOTE: LHD model shown. RHD model similar.

NOTE: If the foam seal on the air inlet housing is deformed or damaged, it must be replaced.
