HOUSING-AIR DISTRIBUTION

WARNING: Refer to the applicable warnings and cautions for this system before performing the following operation (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING-FRONT - WARNING) and (refer to 24 - HEATING & AIR CONDITIONING/PLUMBING-FRONT - CAUTION). Failure to follow the warnings and cautions could result in possible personal injury or death.

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

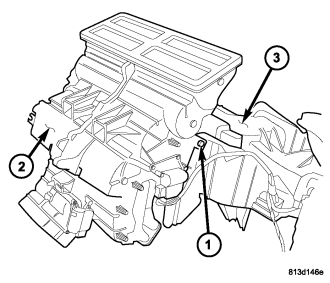

NOTE: The air distribution housing must be removed from the HVAC housing and disassembled for service of the mode-air and blend-air doors.

NOTE: LHD model shown in illustrations. RHD model similar.

NOTE: Take proper precautions to protect the carpeting from spilled engine coolant. Have absorbent toweling readily available to clean up any spills.
