REMOVAL

WARNING: To avoid serious or fatal injury, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

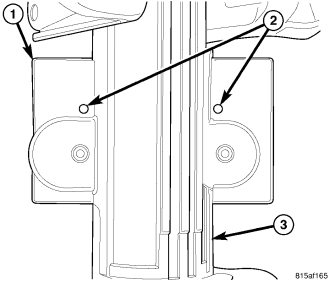

NOTE: The shaft lock module cannot be removed from the steering column while the locking bolt is in the locked position without irreversibly damaging the column. Before attempting service, insert a valid ignition key into the ignition lock cylinder, then rotate the steering wheel from side to side. If the steering wheel can be rotated, the locking bolt is in the unlocked position. Leave the key in the ignition lock cylinder until service has been completed. If the steering wheel cannot be rotated, test and repair the wiring circuits between the module and the ignition switch as required. If no problem is found in these circuits, the module has failed with the locking bolt in the locked position and both the module and the steering column must be replaced with new units.
