B10BC-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK

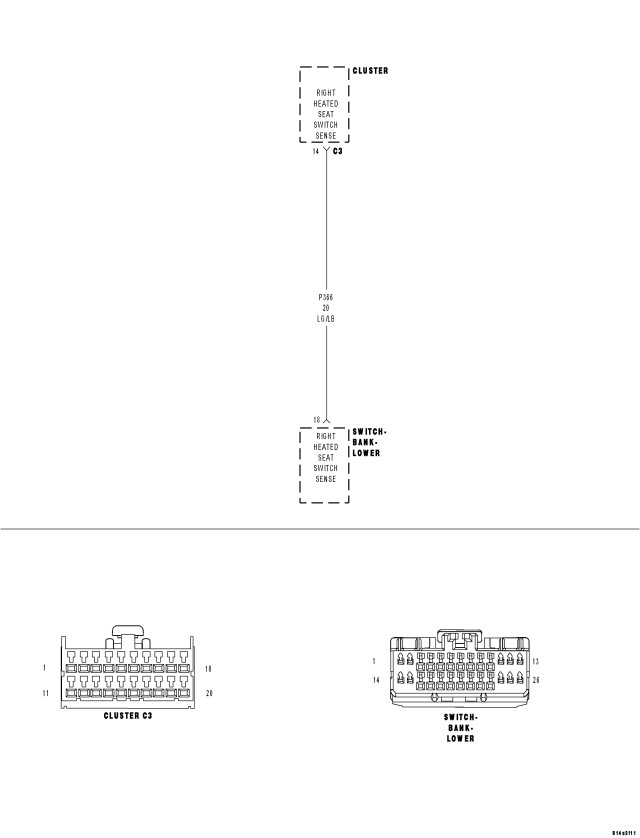

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Ignition on.
- Set Condition:
This code is set whenever the Cluster detects a stuck heated seat switch.
| Possible Causes |
| (P366) RIGHT HEATED SEAT SWITCH SENSE PARTIALLY SHORTED TO GROUND |
| LOWER SWITCH BANK |
| CLUSTER |
Diagnostic Test
1.VERIFY THAT DTC B10BC-RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK IS ACTIVEDoes the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2.HEATED SEAT SWITCH
Does the DTC B10BC RIGHT HEATED SEAT SWITCH INPUT CIRCUIT STUCK reset?
Yes
- Go To 3
No
- Replace the lower switch bank.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

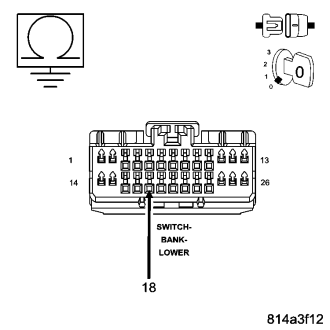

3.CHECK THE (P366) RIGHT HEATED SEAT SWITCH SENSE CIRCUIT FOR A PARTIAL SHORT TO GROUND
Was the resistance below 10K ohms?
Yes
- Repair the (P366) Right Heated Seat Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Cluster.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
