INSTALLATION

NOTE: The single zone heater-A/C system is equipped with a single blend door actuator. The dual zone system has two blend door actuators, one for the driver side blend-air door and one for the passenger side blend-air door.

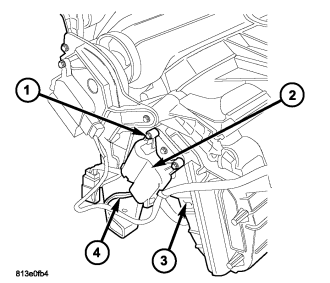

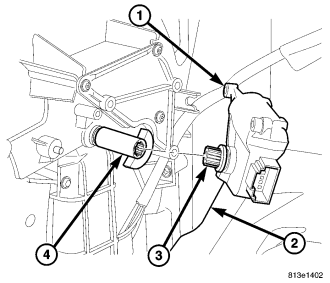

SINGLE ZONE/DUAL ZONE LH SIDE

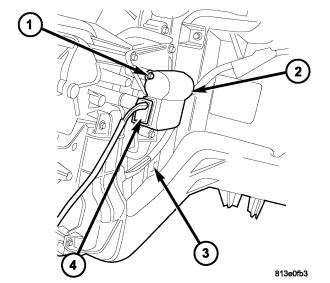

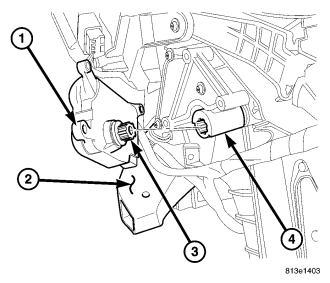

DUAL ZONE RH SIDE

NOTE: LHD model shown in illustrations. RHD model similar.
