P0845-2C HYDRAULIC PRESSURE TEST





For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The Transmission Control System tests the pressure switches when they are off. The test verifies that the switches are operational (They will close with pressure applied). The Transmission Control System verifies that the switch closes when the corresponding element is applied. If a switch fails to close, it is re-tested. If it fails the second test, the DTC will set, the MIL will illuminate and the transmission system will default to the orderly Shutdown routine.


  • When Monitored:

    In any forward gear with engine speed above 1000 RPM shortly after a shift and every minute thereafter.

  • Set Condition:

    After a shift into a forward gear, with engine speed above 1000 RPM, the PCM momentarily turns on element pressure to the Clutch circuits that don't have pressure to identify the correct Pressure Switch closes. If the Pressure Switch does not close 2 times, the DTC sets.


Possible Causes

LINE PRESSURE SENSOR

TRANSMISSION FLUID CONTAMINATION

RELATED TCM POWER INPUT DTCS PRESENT

TRANSMISSION SOLENOID/TRS ASSEMBLY

EXCESSIVE DEBRIS IN OIL PAN

POOR LINE PRESSURE SENSOR CONNECTION

TRANSMISSION CONTROL RELAY DTCS PRESENT

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

(F856) 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

(T147) 2C PRESSURE SWITCH SENSE CIRCUIT SHORT TO ANOTHER CIRCUIT

TRANSMISSION SOLENOID/TRS ASSEMBLY

INTERNAL TRANSMISSION

POWERTRAIN CONTROL MODULE


Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)



Diagnostic Test

1.CHECK FOR RELATED DTCS



Are there any Loss of Prime, TIPM TCM Power Control Circuit, and/or TCM Power Input DTCs present also?

Yes
  • Refer to the Transmission category and perform the appropriate symptom. If the DTC, P0944-LOSS OF PRIME is present, perform its respective test first.


No
  • Go To 2

2.CHECK IF DTC P0755 IS PRESENT



Is the DTC P0755 also present?

Yes
  • Refer to the Transmission category and perform diagnostics for P0755-2C SOLENOID CIRCUIT.


No
  • Go To 3

3.CHECK IF DTCS P0732, P0735 AND/OR P0846 ARE PRESENT



Are the DTCs P0732, P0735, and/or P0846 present also?

Yes


No
  • Go To 4

4.CHECK IF DTC P0845 IS CURRENT


NOTE: This counter only applies to the last DTC set.



Is the STARTS SINCE SET counter 2 or less?

Yes
  • Go To 5


No

5.CHECK IF THE LINE PRESSURE STAYS THE SAME







Did the line pressure remain at a steady value between 585 and 655 kPa or 85 and 95 psi in each position?

Yes
  • Go To 6


No

6.CHECK THE LINE PRESSURE SENSOR CONNECTION




Did the Line Pressure reading on the scan tool change to about 207 kPa or 30 psi when the connector was pushed inward?

Yes


No
  • Go To 7

7.CHECK THE LINE PRESSURE SENSOR OPERATION



CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.


WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury or death.


NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.






NOTE: All three scan tool Line Pressure readings should be steady and ±14 kPa or 2.0 psi of the reading specified on the Transmission Simulator.



Did the scan tool Line Pressure readings match the specified readings on the Transmission Simulator and remain steady in all three positions?

Yes


No
  • Go To 8

8.CHECK THE (F856) 5-VOLT SUPPLY CIRCUIT FOR AN OPEN






CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller tool #8815 to perform diagnosis.




Is the resistance above 5.0 ohms?

Yes


No
  • Go To 9

9.CHECK THE (F856) 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND





Is the resistance below 5.0 ohms?

Yes


No
  • Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool, perform QUICK LEARN.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

10.COMPARE SCAN TOOL TO THE PRESSURE GAUGE



CAUTION: Apply parking brake.




CAUTION: Do not overheat transmission.






Does the scan tool Line Pressure readings match the Pressure Gauge readings ± 10 psi?

Yes


No

11.CHECK WIRING AND CONNECTORS



CAUTION: Removal of the Starter Relay will prevent the vehicle from being started in gear.


WARNING: The Starter Relay must be removed from the PDC. Failure to do so can result in personal injury or death.


NOTE: Failure to remove the Starter Relay can cause a Transmission - No Response condition.








Did the 2C Pressure Switch state change to closed and remain closed while wiggling the wires?

Yes


No

12.CHECK FOR EXCESSIVE DEBRIS





Does the Transmission Oil Pan contain excessive debris or contamination?

Yes


No

13.CHECK THE 2C HYDRAULIC CLUTCH CIRCUIT


NOTE: The 2C hydraulic clutch circuit contains a small bleed orifice, a small amount of air leakage is normal.



Was there excessive air leakage noticed during the air check?

Yes


No
  • Disassemble and inspect the Valve Body and repair as necessary. Inspect the 2C Accumulator piston and seals. Check for an extra check ball downstream from the #7 check ball pocket and repair as necessary. If no problems are found in the Valve Body, replace the Transmission Solenoid/TRS Assembly per the Service Information.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

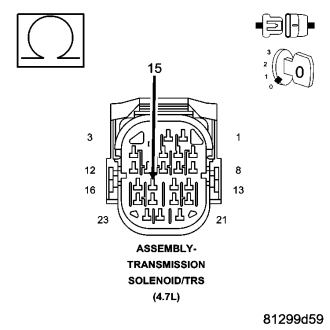

14.CHECK THE (T147) 2C PRESSURE SWITCH SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT





NOTE: Make sure the Transmission Solenoid/TRS Assembly harness connector is disconnected.


NOTE: Check connectors - Clean/repair as necessary.




Is the resistance below 5.0 ohms between the (T147) 2C Pressure Switch Sense circuit and any other circuit(s) in the Transmission Solenoid/TRS Assembly harness connector?

Yes


No
  • Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool, perform QUICK LEARN.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

15.CHECK WIRING AND CONNECTORS







Where there any problems found?

Yes


No
  • Test Complete.
