INSTALLATION

NOTE: The output shaft shim should be 0.3 mm (0.012 in.). If a 0.3 mm (0.012 in.) shim is not available, use a 0.2 mm (0.008 in. ) 0.4 mm (0.016 in. ) or 0.5 mm (.020 in. ) shim.

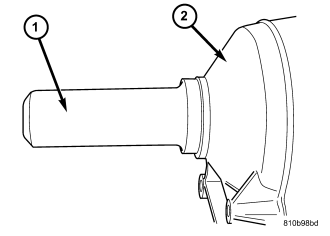

CAUTION: Verify that the geartrain end-play shim is properly installed over the output shaft and against the park gear.

NOTE: The closed side of the bearing must be installed toward the parking lock gear. If the bearing is installed in the other direction, the transmission gearcase will need to be removed in order to remove the bearing.

NOTE: The Staking Tool - 9078 has two possible locations for the beveled staking pin. The pin must be installed in the hole labeled “Transmission” for this operation. This hole is located directly across from the spring loaded alignment pin.
