INSTALLATION

NOTE: The silver bolts retain the guides to the cylinder heads and the black bolts retain the guides to the engine block.

CAUTION: Overtightening the tensioner arm torx® bolt can cause severe damage to the cylinder head. Tighten torx® bolt to specified torque only.

NOTE: It will be necessary to slightly rotate camshafts for sprocket installation.

CAUTION: Remove excess oil from the camshaft sprocket bolt. Failure to do so can result in over-torque of bolt resulting in bolt failure.

CAUTION: Ensure the plate between the left secondary chain tensioner and block is correctly installed.

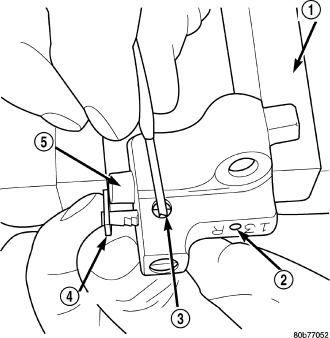

NOTE: Left and right secondary chain tensioners are not common.

CAUTION: After pulling locking pins out of each tensioner, DO NOT manually extend the tensioner(s) ratchet. Doing so will over tension the chains, resulting in noise and/or high timing chain loads.

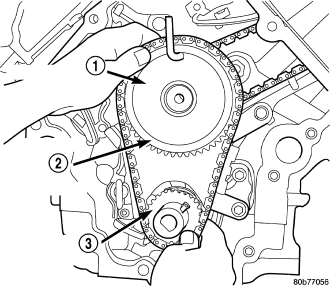

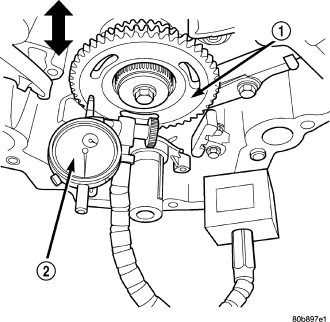

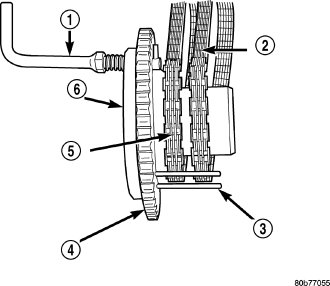

• primary chain idler sprocket dot is at 12 o'clock.
• primary chain crankshaft sprocket dot is at 6 o'clock.
• secondary chain camshaft sprockets “V8” marks are at 12 o'clock.

NOTE: Before installing threaded plug in right cylinder head, the plug must be coated with sealant to prevent leaks.
