P0693-COOLING FAN 2 RELAY CONTROL CIRCUIT LOW

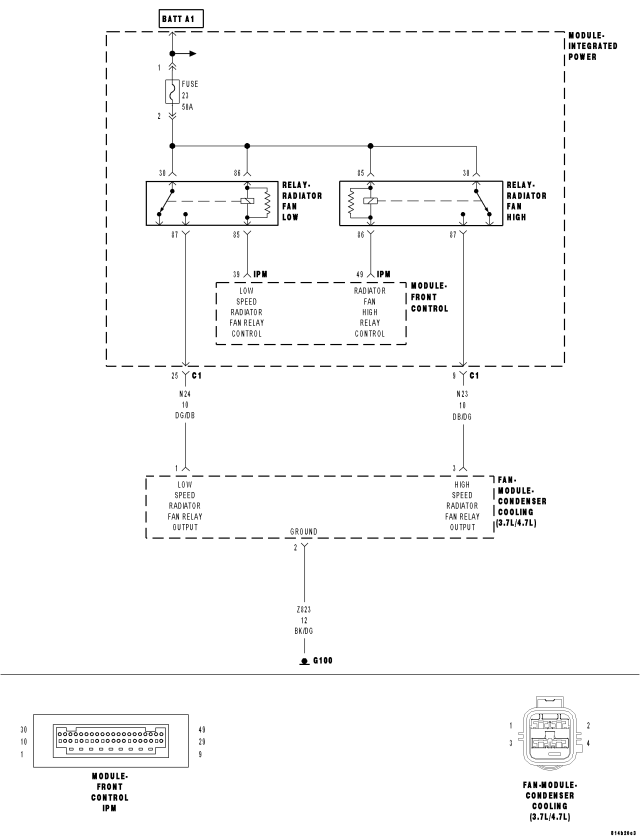

For a complete wiring diagram Refer to Section 8W.

• When Monitored:

  Ignition on and the High Speed Radiator Fan Relay is powered on.

• Set Condition:

  The FCM detects and open or short in the Cooling Fan No.2 Relay Control circuit. The circuit is continuously monitored.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Diagnostic Test

• Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 2

• Go To 3

• Repair the open or short to ground in the (A16) Fused B+ circuits. Inspect the related fuse and repair as necessary.
• Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 4

• Replace the Relay.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 5

• Repair the open in the (N112) Cooling Fan No.2 Relay Control circuit.
• Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Repair the short to ground in the (N112) Cooling Fan No.2 Relay Control circuit.
• Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Go To 6

NOTE: Before continuing, check the FCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

• Repair as necessary.
• Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

• Replace the Front Control Module per Service Information.
• Perform BODY VERIFICATION TEST. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
