5.7L

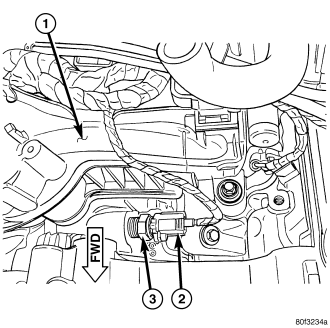

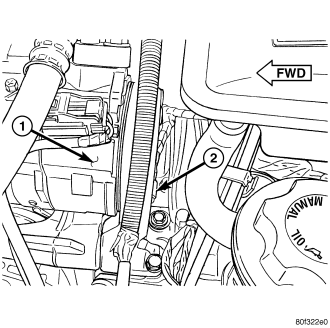

The Engine Coolant Temperature (ECT) sensor on the 5.7L engine is located under the air conditioning compressor . It is installed into a water jacket at the front of the cylinder block .

WARNING: Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.
