B1B91-DRIVER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH

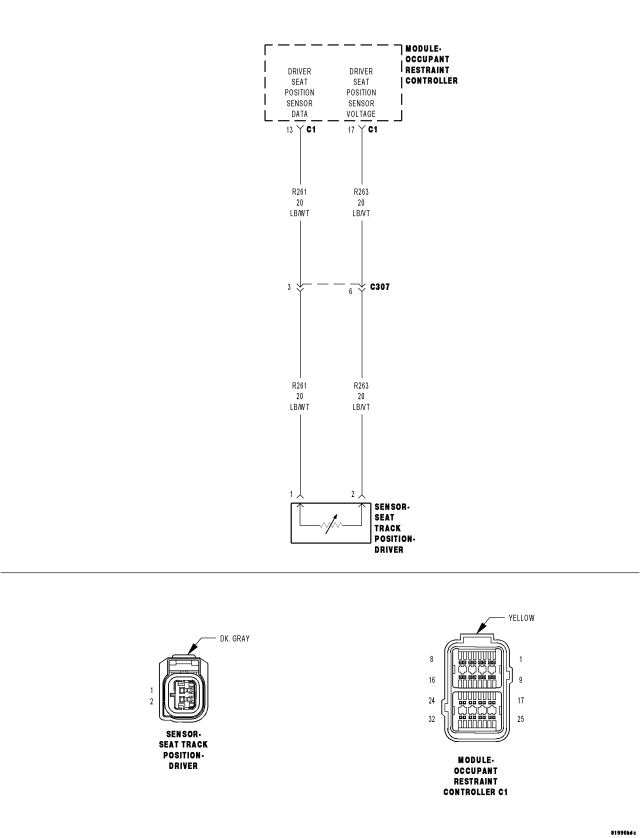

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on the ORC monitors the Seat Track Position Sensors circuits.

  • Set Condition:

    If the module detects current on the Seat Track Position Sensors circuits and the module is not configured for STPS.


Possible Causes

DRIVER SEAT TRACK POSITION SENSOR

WIRING

OCCUPANT RESTRAINT CONTROLLER (ORC)




Diagnostic Test

1.CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)

NOTE: Ensure the battery is fully charged.




Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes
  • Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of symptoms.


No
  • Go To 2

2.VERIFY THAT B1B91-DRIVER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH IS ACTIVE





Does the scan tool display active: B1B91-DRIVER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH?

Yes
  • Go To3


No
  • Perform the *ORC VERIFICATION TEST-VER. 1

3.VERIFY WIRING




Are Seat Position Sensor(s) present?

Yes

  • WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

    WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and personal injury or death.

    Replace the ORC in accordance with the Service Information.
  • Perform the *ORC VERIFICATION TEST-VER. 1


No
  • Perform the *ORC VERIFICATION TEST-VER. 1
