ASSEMBLY

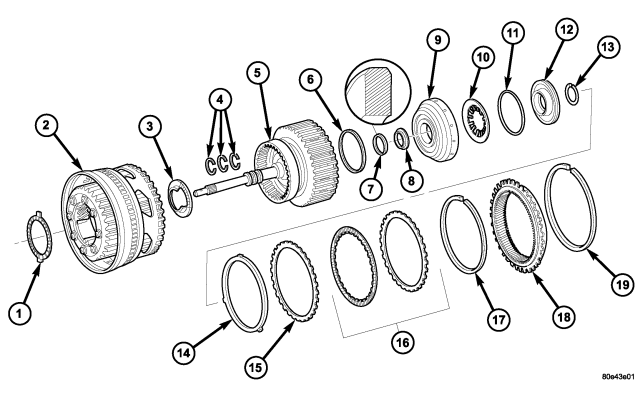

Input Clutch K2 Components


1 - NEEDLE ROLLER BEARING
  		11 - SPRING RETAINER SEALING - O-RING

2 - K1 INNER DISC CARRIER WITH INTEGRATED FRONT GEAR SET
  		12 - SPRING RETAINER

3 - THRUST BEARING
  		13 - SNAP-RING

4 - TORLON SEAL RINGS
  		14 - DISC SPRING

5 - INPUT SHAFT AND K2 CLUTCH
  		15 - EXTERNALLY TOOTHED PLATE - 1.8 MM (0.071 IN.)

6 - PISTON OUTER SEAL RING - O-RING
  		16 - MULTIPLE DISC PACK

7 - PISTON INNER SEAL RING
  		17 - SNAP-RING

8 - THRUST WASHER
  		18 - HOLLOW GEAR

9 - PISTON
  		19 - SNAP-RING

10 - DISC SPRING









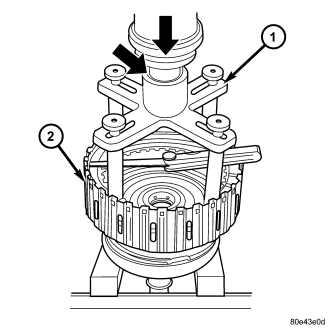

NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the disc spring (14) to its original location.

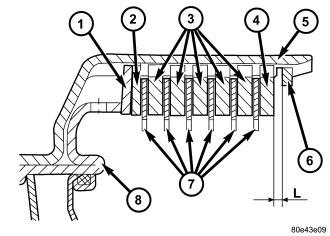

1 - DISC SPRING

2 - OUTER MULTIPLE DISC - 1.8 MM (0.071 IN.)

3 - OUTER MULTIPLE DISC - 3.5 MM (0.138 IN.)

4 - OUTER MULTIPLE DISC - 4.0 MM (0.158 IN.)

5 - K2 OUTER DISC CARRIER

6 - SNAP-RING

7 - FRICTION DISCS

8 - PISTON











Input Clutch K2 Components


1 - NEEDLE ROLLER BEARING
  		11 - SPRING RETAINER SEALING - O-RING

2 - K1 INNER DISC CARRIER WITH INTEGRATED FRONT GEAR SET
  		12 - SPRING RETAINER

3 - THRUST BEARING
  		13 - SNAP-RING

4 - TORLON SEAL RINGS
  		14 - DISC SPRING

5 - INPUT SHAFT AND K2 CLUTCH
  		15 - EXTERNALLY TOOTHED PLATE - 1.8 MM (0.071 IN.)

6 - PISTON OUTER SEAL RING - O-RING
  		16 - MULTIPLE DISC PACK

7 - PISTON INNER SEAL RING
  		17 - SNAP-RING

8 - THRUST WASHER
  		18 - HOLLOW GEAR

9 - PISTON
  		19 - SNAP-RING

10 - DISC SPRING

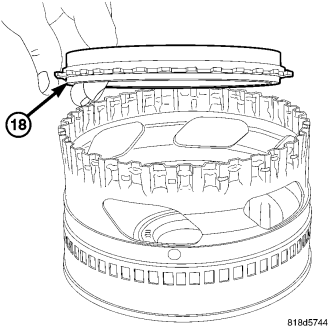

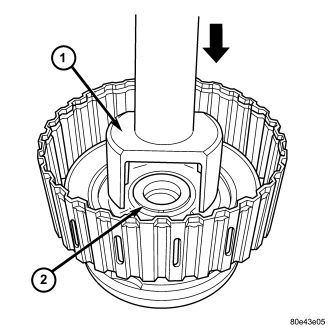

NOTE: Insure that the Hollow Gear (18) is oriented during installation such it protrudes from the K2 Retainer.
