DESCRIPTION

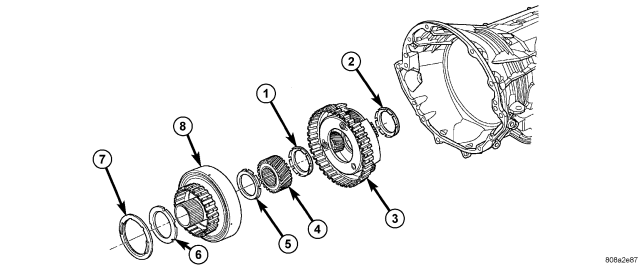

Reaction Planetary Geartrain


1 - THRUST BEARING NUMBER 8
  		 5 - THRUST BEARING NUMBER 7

2 - THRUST BEARING NUMBER 9
  		 6 - THRUST PLATE (SELECT)

3 - REACTION PLANETARY CARRIER
  		 7 - THRUST BEARING NUMBER 6

4 - REACTION SUN GEAR
  		 8 - REACTION ANNULUS


The planetary geartrain is located behind the 4C retainer/bulkhead, toward the rear of the transmission. The planetary geartrain consists of three primary assemblies:

  • Reaction (3, 4, 8).




  • Reverse (6).
  • Input (3,4, 5).
