REAR

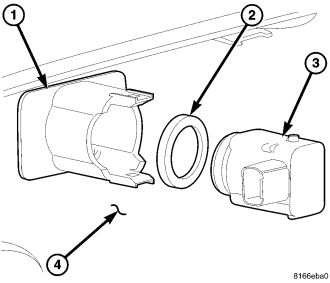

NOTE: The park assist sensors (3) and the sensor spacers (2) are each available for separate service replacement. The sensor brackets (1) are bonded and integral to the back side of the rear bumper fascia (4).

NOTE: The two outboard rear park assist sensors can be accessed for service with the rear bumper fascia installed on the vehicle.
