DESCRIPTION

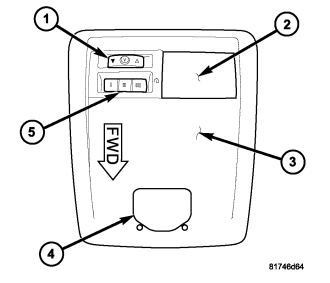

The power sunroof switch (1) is a combination push-button and rocker switch module mounted in the overhead console (3). The sunroof switch is a direct contact unit that is directly wired to the sunroof motor/module assembly. The sunroof switch performs the following functions:

• Power sunroof open (right side of switch pushed)
• Power sunroof closed (left side of switch pushed)
• Power sunroof vent (switch center button pushed)

The sunroof switch cannot be repaired and if damaged or inoperative must be replaced. (Refer to 8 - ELECTRICAL/POWER TOP/SWITCH - REMOVAL) for the sunroof switch removal procedure.
