POWER SEAT SWITCH


DRIVER WITHOUT MEMORY SEAT SYSTEM





(Refer to 8 - ELECTRICAL/POWER SEATS/SEAT SWITCH - REMOVAL)

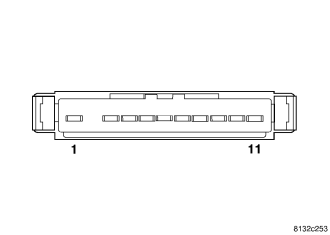

DRIVER POWER SEAT SWITCH WITHOUT MEMORY SEAT SYSTEM CONTINUITY (Refer to 8 - ELECTRICAL/POWER SEATS/POWER SEAT ADJUSTER - DIAGNOSIS AND TESTING)

DRIVER POWER SEAT SWITCH WITHOUT MEMORY SEAT SYSTEM CONTINUITY

SWITCH POSITION
  		CONTINUITY BETWEEN

OFF
  		7-1, 7-3, 7-4, 7-5, 7-8, 7-9, 7-10, 7-11

RECLINER UP
  		6-3, 7-1, 7-4, 7-5, 7-8, 7-9, 7-10, 7-11

RECLINER DOWN
  		6-1, 7-3, 7-4, 7-5, 7-8, 7-9, 7-10, 7-11

HORIZONTAL FORWARD
  		6-8, 7-1, 7-3, 7-4, 7-5, 7-9, 7-10, 7-11

HORIZONTAL REARWARD
  		6-4, 7-1, 7-3, 7-5, 7-8, 7-9, 7-10, 7-11

FRONT TILT DOWN
  		6-5, 7-1, 7-3, 7-4, 7-8, 7-9, 7-10, 7-11

FRONT TILT UP
  		6-9, 7-1, 7-3, 7-4, 7-5, 7-8, 7-10, 7-11

REAR TILT DOWN
  		6-10, 7-1, 7-3, 7-4, 7-5, 7-8, 7-9, 7-11

REAR TILT UP
  		6-11, 7-1, 7-3, 7-4, 7-5, 7-8, 7-9, 7-10



PASSENGER SEAT





(Refer to 8 - ELECTRICAL/POWER SEATS/SEAT SWITCH - REMOVAL)
PASSENGER POWER SEAT SWITCH CONTINUITY (Refer to 8 - ELECTRICAL/POWER SEATS/POWER SEAT ADJUSTER - DIAGNOSIS AND TESTING)

PASSENGER POWER SEAT SWITCH CONTINUITY

SWITCH POSITION
  		CONTINUITY BETWEEN

OFF
  		7-1, 7-3, 7-4, 7-8

RECLINER UP
  		6-3, 7-1, 7-4, 7-8

RECLINER DOWN
  		6-1, 7-3, 7-4, 7-8

HORIZONTAL FORWARD
  		6-8, 7-1, 7-3, 7-4

HORIZONTAL REARWARD
  		6-4, 7-1, 7-3, 7-8



DRIVER WITH MEMORY SEAT SYSTEM





(Refer to 8 - ELECTRICAL/POWER SEATS/SEAT SWITCH - REMOVAL)

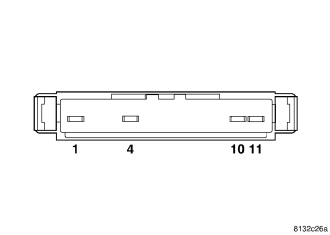

DRIVER POWER SEAT SWITCH WITH MEMORY SEAT SYSTEM CONTINUITY (Refer to 8 - ELECTRICAL/POWER SEATS/POWER SEAT ADJUSTER - DIAGNOSIS AND TESTING)

DRIVER POWER SEAT SWITCH WITH MEMORY SEAT SYSTEM CONTINUITY

SWITCH POSITION
  		CONTINUITY BETWEEN
  		RESISTANCE VALUE

OFF
  		10-4
  		OPEN

OFF
  		10-11
  		OPEN

OFF
  		1-4
  		47 OHMS

OFF
  		1-11
  		47 OHMS

REAR TILT UP
  		10-11
  		169 OHMS

REAR TILT DOWN
  		10-11
  		76 OHMS

HORIZONTAL FORWARD
  		10-11
  		43 OHMS

HORIZONTAL REARWARD
  		10-11
  		10 OHMS

RECLINER UP
  		10-4
  		43 OHMS

RECLINER DOWN
  		10-4
  		10 OHMS

FRONT TILT UP
  		10-4
  		169 OHMS

FRONT TILT DOWN
  		10-4
  		76 OHMS

ALL RESISTANCE VALUES ARE ± FIVE PERCENT
