B184F–FLIPPER GLASS CONTROL CIRCUIT HIGH– CLUSTER

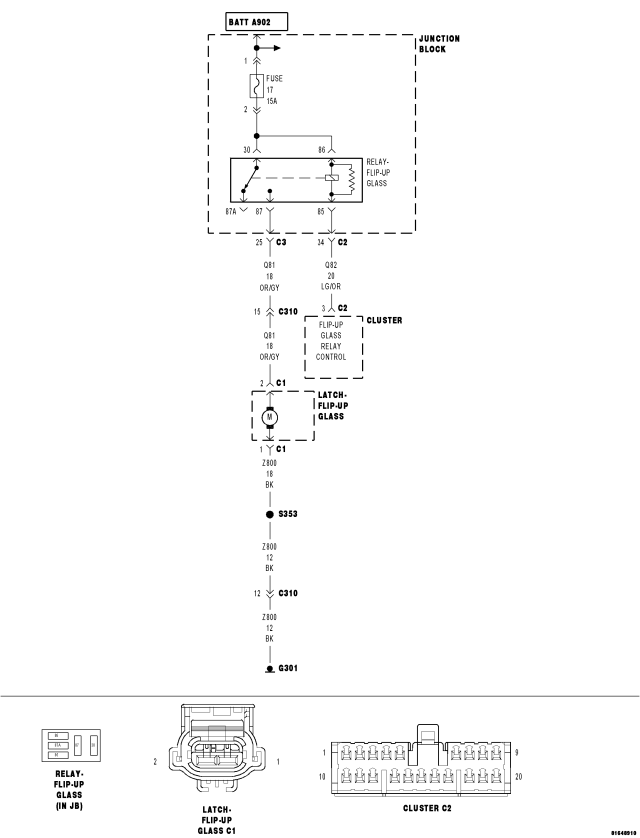

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Cluster senses a high condition on the Flip-UP (Flipper) Glass Relay Control circuit for over 10 seconds, this code will set.
| Possible Causes |
| (Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO BATTERY |
| FLIP-UP GLASS RELAY |
| INSTRUMENT CLUSTER |
Diagnostic Test
1.TEST FOR INTERMITTENT CONDITIONDoes the scan tool display B184F-FLIPPER GLASS CONTROL CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

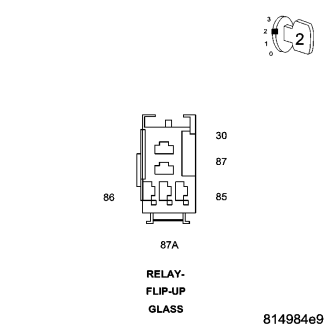

2.FLIP-UP GLASS RELAY SHORTED
Does the scan tool display FLIPPER GLASS RELAY CONTROL CIRCUIT HIGH?
No
- Replace the Flip-Up Glass relay.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 3

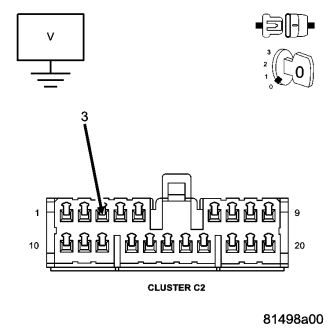

3.(Q82) FLIP-UP GLASS RELAY CONTROL CIRCUIT SHORT TO BATTERY
Is the voltage above 0.5 volts?
Yes
- Repair the (Q82) Flip-Up Glass Relay Control circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
