B1918–PASSENGER WINDOW CONTROL 2 CIRCUIT LOW – PDM

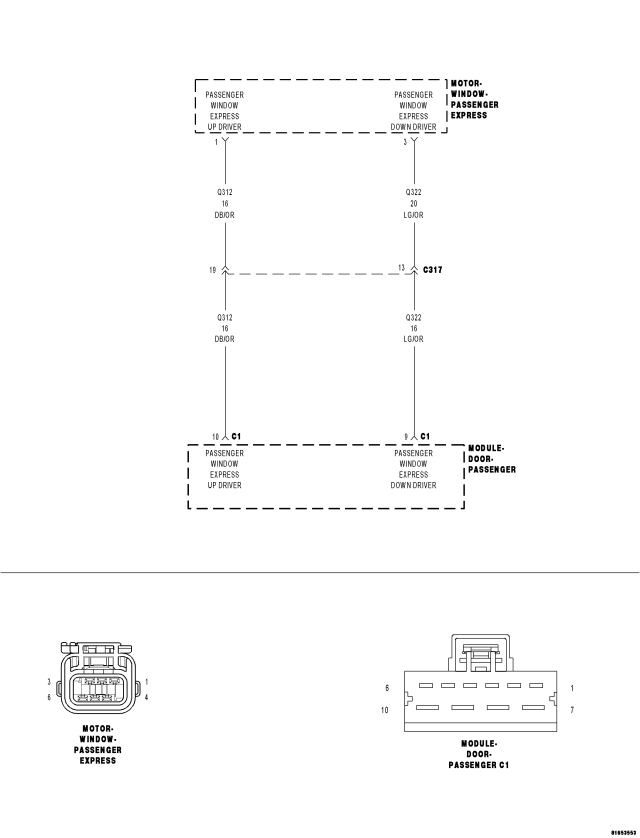

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Whenever the module is awake.
- Set Condition:
When the Passenger Window Express Down Driver circuit is grounded during a window down movement command, this code will set.
| Possible Causes |
| (Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO GROUND |
| (Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORTED TO THE (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT |
| WINDOW MOTOR SHORTED |
| PASSENGER DOOR MODULE (PDM) |
Diagnostic Test
1.TEST FOR INTERMITTENT CONDITIONDoes the scan tool display B1918–PASSENGER WINDOW CONTROL 2 CIRCUIT LOW?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. WINDOW MOTOR SHORTED
Does the scan tool display B1918–PASSENGER WINDOW CONTROL 2 CIRCUIT LOW?
No
- Replace the Window Motor in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 3
3.(Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO GROUND

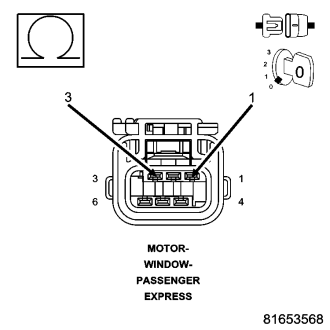

Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q322) Passenger Window Express Down Driver circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go TO 4
4.(Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q322) Passenger Window Express Down Driver circuit for a short to the (Q312) Passenger Window Express Up Driver circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Passenger Door Module.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
