INSTALLATION

WARNING: A seat structure that has seen significant load may have the locking mechanism activated and may exhibit the following symptoms:

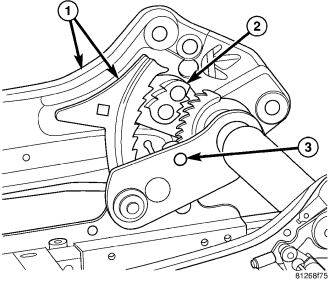

Locking pawl (2) loose
Locking pawl (2) engaged into the seat frame sidemember (1)
Height adjuster only works on outboard side
Broken or missing shear pin (3)

If any one or more of these symptoms exist replace the height adjuster assembly. Do not attempt any repairs. Failure to follow these instructions may result in personal injury or death.

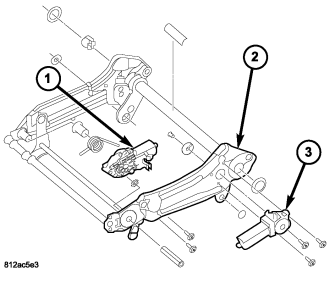

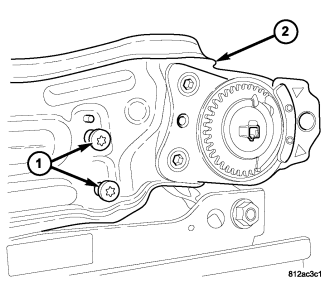

FRONT TILT MOTOR

(Refer to 23 - BODY/SEATS/SEAT CUSHION COVER - INSTALLATION)

(Refer to 23 - BODY/SEATS/SEAT - INSTALLATION)

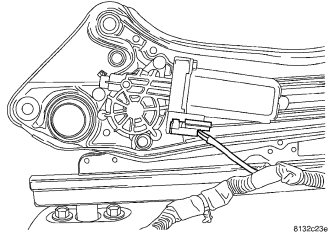

HEIGHT ADJUST MOTOR

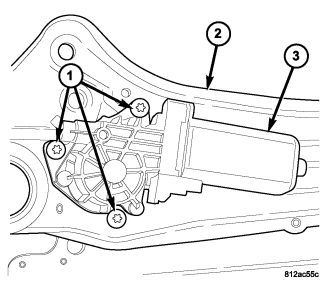

Do not torque screw at this time.

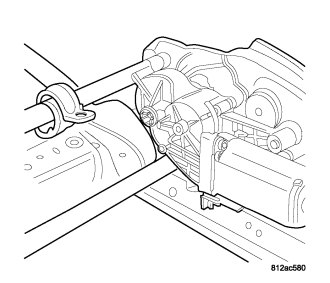

It may be necessary to twist the motor slightly to align the fastener holes.

(Refer to 23 - BODY/SEATS/SEAT CUSHION COVER - INSTALLATION)

(Refer to 23 - BODY/SEATS/SEAT - INSTALLATION)
