ASSEMBLY

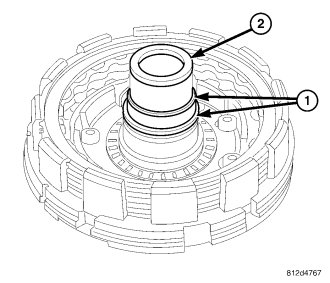

Holding Clutch B1

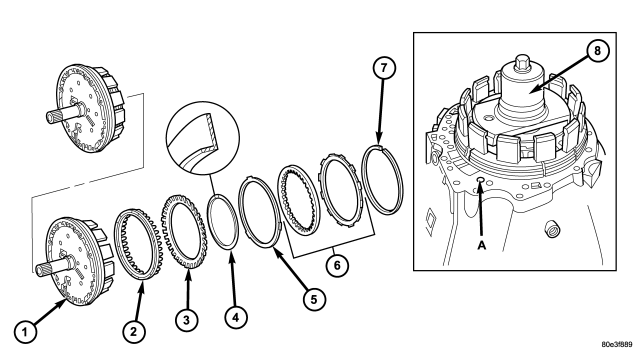

1 - HOLDING CLUTCH B1 OUTER CARRIER	5 - DISC SPRING
2 - PISTON	6 - MULTIPLE DISC PACK
3 - DISC SPRING	7 - SNAP-RING
4 - SNAP-RING	8 - MULTI-USE SPRING COMPRESSOR 8900

NOTE: Check vulcanized gasket, replace if necessary.

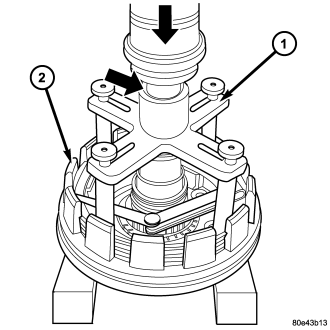

NOTE: The collar of the snap-ring must point towards the multiple-disc pack. After installing, check snap-ring for correct seat.

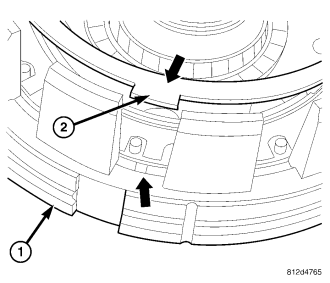

NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the disc spring (5) to its original location.

CAUTION: When working with double sided friction discs, an externally lugged steel plate is installed first, followed by a friction disc, and continuing on until all the required discs are installed. When working with single sided friction discs, an externally lugged disc is installed first, followed by an internally lugged disc, and continuing on until all the required discs are installed. All single sided discs are installed with the friction side up.

NOTE: Place new friction multiple-discs in ATF fluid for one hour before installing.

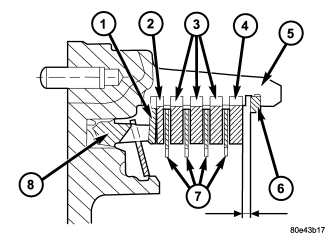

1 - DISC SPRING

2 - OUTER MULTIPLE DISC - 1.8 mm (0.071 IN.)

3 - OUTER MULTIPLE DISC - 2.8 mm (0.110 IN.)

4 - OUTER MULTIPLE DISC - 4.0 mm (0.158 IN.)

5 - B1 OUTER CARRIER

6 - SNAP-RING

7 - INNER MULTIPLE DISCS

8 - PISTON

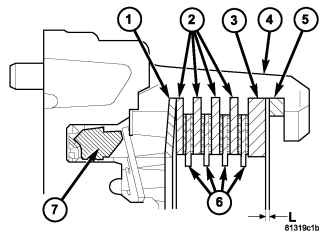

1 - DISC SPRING

2 - OUTER MULTIPLE DISC

3 - OUTER MULTIPLE DISC - 4.0 mm (0.158 IN.)

4 - B1 OUTER CARRIER

5 - SNAP-RING

6 - INNER MULTIPLE DISCS

7 - PISTON
