ASSEMBLY






Input Clutch K1 Components


1 - K1 OUTER DISC CARRIER
  		7 - DISC SPRING

2 - FREEWHEELING CLUTCH F1
  		8 - SPRING PLATE

3 - SNAP-RING
  		9 - SPRING PLATE SEALING RING

4 - OUTER DISC CARRIER SEALING RING
  		10 - SNAP-RING

5 - PISTON SEALING RING
  		11 - SNAP-RING

6 - PISTON
  		12 - MULTIPLE DISC PACK - REFER TO TEXT FOR CORRECT ASSEMBLY ORDER











CAUTION: When working with double sided friction discs, an externally lugged steel plate is installed first, followed by a friction disc, and continuing on until all the required discs are installed. When working with single sided friction discs, an externally lugged disc is installed first, followed by an internally lugged disc, and continuing on until all the required discs are installed. All single sided discs are installed with the friction side up.

NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the spring plate (8) to its original location.

NOTE: Place new friction multiple-discs in ATF fluid for one hour before installing.

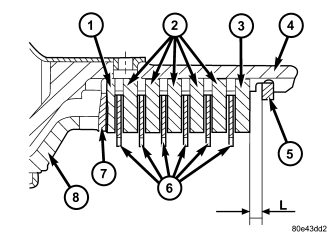

1 - OUTER MULTIPLE DISC - 1.8MM (0.071 IN.)

2 - OUTER MULTIPLE DISC - 2.8MM (0.110 IN.)

3 - OUTER MULTIPLE DISC - 4.0MM (0.158 IN.)

4 - K1 OUTER DISC CARRIER

5 - SNAP-RING

6 - FRICTION DISCS

7 - DISC SPRING

8 - PISTON

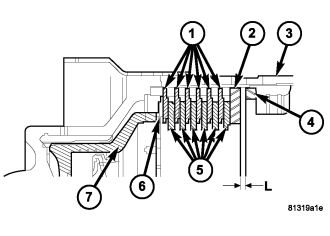

1 - OUTER MULTIPLE DISCS

2 - OUTER MULTIPLE DISC - 4.0MM (0.158 IN.)

3 - K1 OUTER DISC CARRIER

4 - SNAP-RING

5 - INNER MULTIPLE DISCS

6 - DISC SPRING

7 - PISTON
