DISASSEMBLY

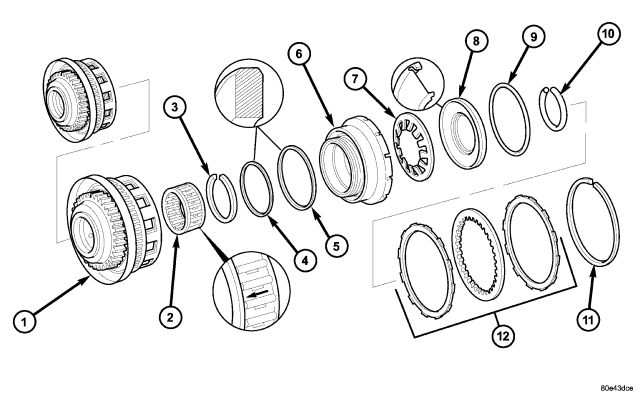

Input Clutch K1 Components


1 - K1 OUTER DISC CARRIER
  		7 - DISC SPRING

2 - FREEWHEELING CLUTCH F1
  		8 - SPRING PLATE

3 - SNAP-RING
  		9 - SPRING PLATE SEALING RING

4 - OUTER DISC CARRIER SEALING RING
  		10 - SNAP-RING

5 - PISTON SEALING RING
  		11 - SNAP-RING

6 - PISTON
  		12 - MULTIPLE DISC PACK - REFER TO TEXT FOR CORRECT ASSEMBLY ORDER
