FRONT LAMP AIMING


VEHICLE PREPARATION FOR LAMP ALIGNMENT



0

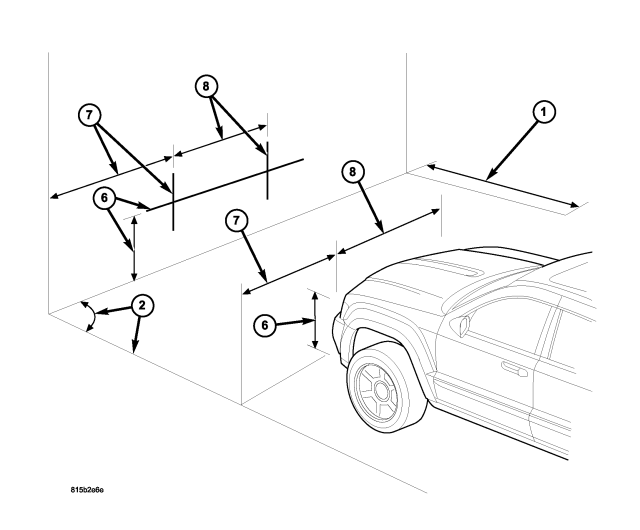

LAMP ALIGNMENT SCREEN PREPARATION





The procedure that follows will prepare a suitable front lamp alignment screen.










LAMP ALIGNMENT SCREEN DISTANCE

LAMP
  		MARKET

DOMESTIC
  		EXPORT

HEADLAMPS
  		7.62 meters
(25.0 feet)
  		10.0 meters
(32.81 feet)

FRONT FOG LAMPS
  		7.62 meters
(25.0 feet)
  		7.62 meters
(25.0 feet)

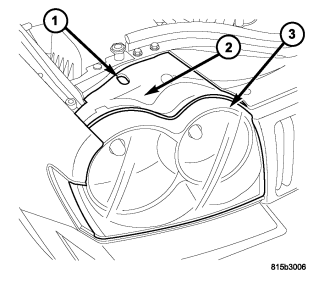

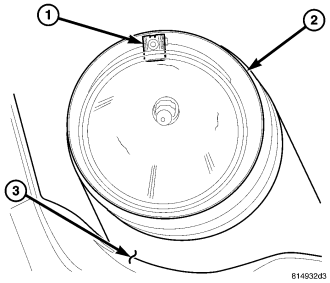

HEADLAMP ALIGNMENT

NOTE: Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern on the alignment screen from the horizontal line to 50 millimeters (2 inches) below the horizontal line for domestic market vehicles, or to 104 millimeters (4.125 inches) below the horizontal line for export market vehicles. No horizontal (right/left) adjustment is required for this headlamp beam pattern in domestic market vehicles. Export market vehicles have a second horizontal (right/left) adjustment screw provided, which is accessible through a clearance hole on the inboard side of the front lamp unit cover. The high beam pattern will be correct when the low beams are properly aimed.







FOG LAMP ALIGNMENT

NOTE: A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.
