REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: Take the proper precautions to protect the face of the instrument panel from cosmetic damage while performing this procedure.

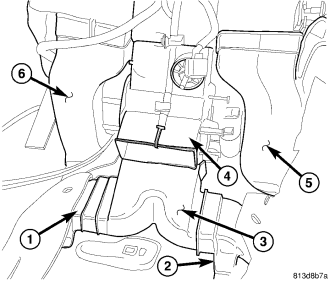

FRONT FLOOR DUCTS

NOTE: Illustration shown with instrument panel, gear selector and console duct removed for clarity.

REAR FLOOR DUCTS

NOTE: LHD model shown in illustrations. RHD model similar.
