P0958-AUTOSTICK CIRCUIT HIGH

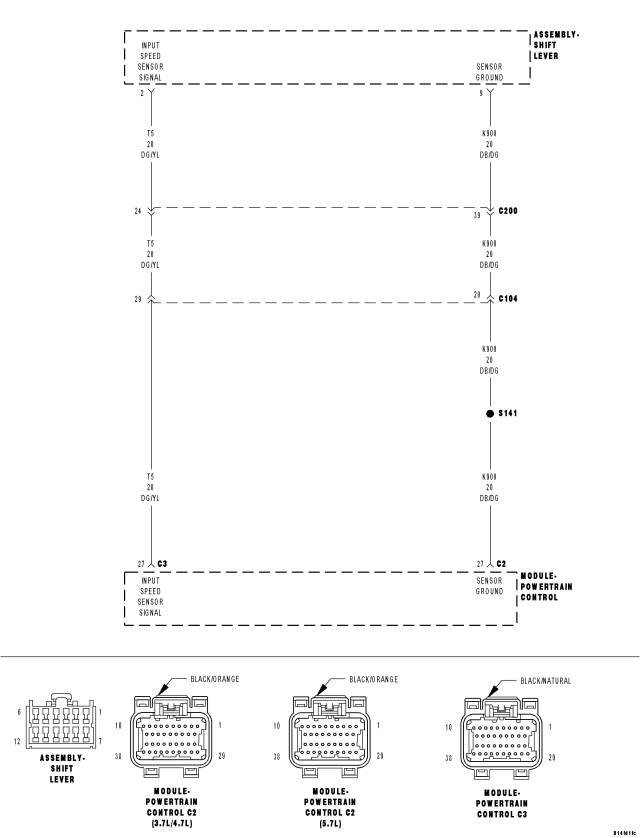

For a complete wiring diagram Refer to Section 8W

Theory of Operation


The AutoStick Switch is located in the Shift Lever Assembly (SLA). The gear requested by the AutoStick selection is then sent over the AutoStick Up/Down sense circuit to the PCM to engage the requested gear. Normal AutoStick® voltages are: Down = 0.71 to 1.11 volts, Up = 2.02 to 2.41 volts.


  • When Monitored:

    Ignition on and engine running and after 0.5 seconds.

  • Set Condition:

    When the monitored AutoStick Up/Down Sense circuit voltage rises above 4.75 volts.


Possible Causes

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT OPEN

(K900) SENSOR GROUND CIRCUIT OPEN

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT SHORT TO VOLTAGE

(T5) AUTOSTICK UP/DOWN SENSE CIRCUIT SHORT TO ANOTHER CIRCUIT

SHIFT LEVER ASSEMBLY

TRANSMISSION CONTROL MODULE


Always perform the 45RFE/545RFE Pre-Diagnostic Troubleshooting Procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)



Diagnostic Test

1.CHECK IF THE DTC IS CURRENT




Does the scan tool AutoStick voltage read above 4.75 volts?

Yes
  • Go To 2


No
  • Go To 7

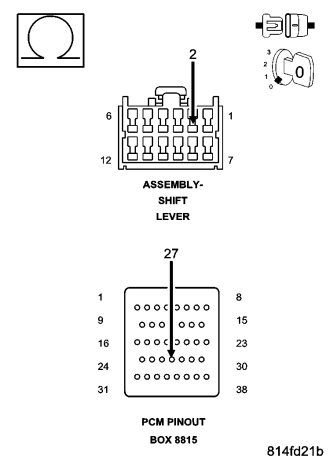

2.CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A OPEN





CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller tool #8815 to perform diagnosis.





Is the resistance below 5.0 ohms?

Yes
  • Go To 3


No

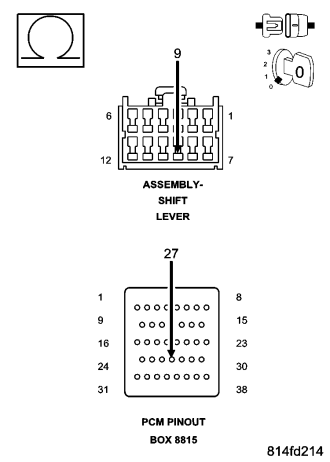

3.CHECK THE (K900) SENSOR GROUND CIRCUIT FOR AN OPEN






Is the resistance below 5.0 ohms?

Yes
  • Go To 4


No

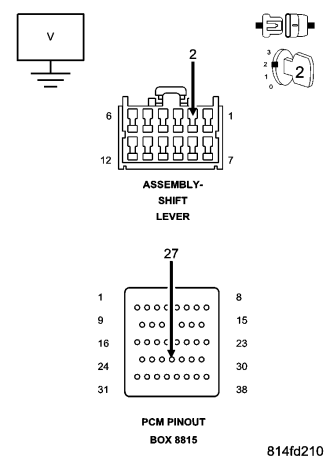

4.CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A SHORT TO VOLTAGE






Is the voltage above 0.5 volts?

Yes


No
  • Go To 5

5.CHECK THE (T5) AUTOSTICK UP/DOWN SENSE CIRCUIT FOR A SHORT TO ANOTHER CIRCUIT






Is the resistance below 5.0 ohms between the (T5) AutoStick Up/Down Sense circuit and any other circuit(s) in the Shift Lever Assembly harness connector.

Yes


No
  • Go To6

6.CHECK THE AUTOSTICK SWITCH








Did the scan tool AutoStick voltage drop below 0.5 volts?

Yes


No
  • Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool, perform QUICK LEARN.
  • Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - STANDARD PROCEDURE)

7.CHECK THE AUTOSTICK VOLTAGE WHILE SHIFTING





Did the scan tool AutoStick voltage rise above 4.75 volts at any given time?

Yes


No
  • Go To 8

8.INTERMITTENT WIRING AND CONNECTORS






Were there any problems found?

Yes


No
  • Test Complete.
