REMOVAL

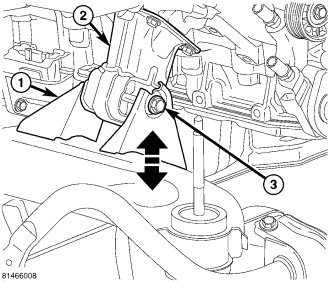

Do not raise engine at this time.

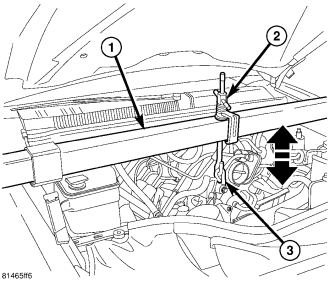

CAUTION: Only raise the engine enough to provide clearance for oil pan removal. Check for proper clearance at fan shroud to fan and cowl to intake manifold.

(Refer to 3 - DIFFERENTIAL & DRIVELINE/FRONT AXLE - C200F - REMOVAL)

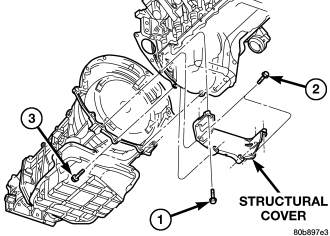

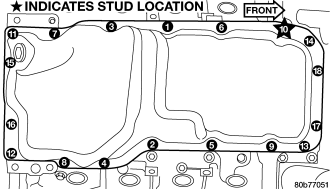

NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come out with oil pan.
