P0645-A/C CLUTCH RELAY CIRCUIT

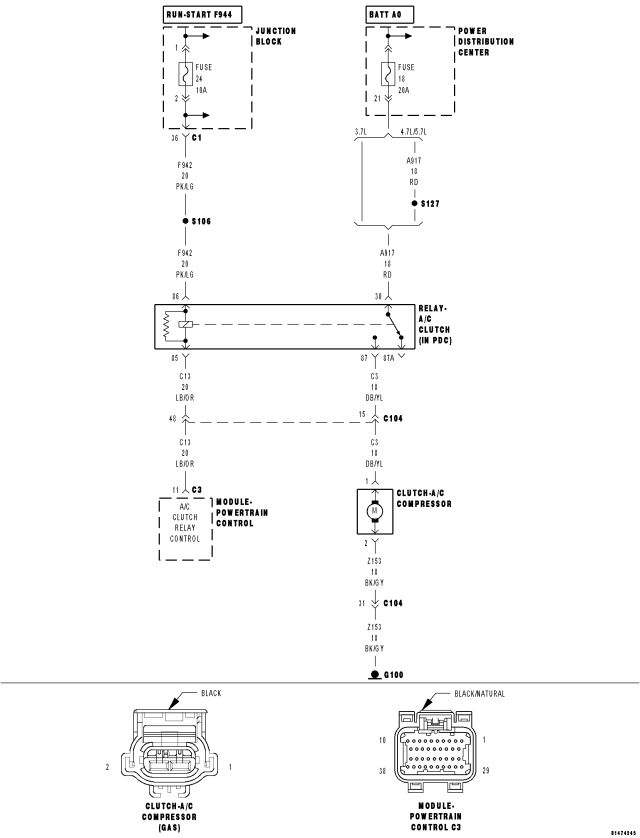

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on. Battery voltage greater than 10 volts. A/C Switch on.

  • Set Condition:

    An open or shorted condition is detected in the A/C clutch relay control circuit. One Trip Fault. Three good trips to turn off the MIL.


Possible Causes

(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT

(A917) FUSED B+ CIRCUIT

(C13) A/C CLUTCH RELAY CONTROL CIRCUIT OPEN

(C13) A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO GROUND

A/C CLUTCH RELAY

PCM



Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1.A/C CLUTCH RELAY OPERATION




Is the A/C Clutch Relay operating?

Yes


No
  • Go To 2

2.A/C CLUTCH RELAY RESISTANCE





Is the resistance between 60 to 80 ohms?

Yes
  • Go To 3


No

3.(F942) FUSED IGNITION SWITCH OUTPUT CIRCUIT






Does the test light illuminate brightly?

Yes
  • Go To 4


No

4.(A917) FUSED B+ CIRCUIT





Does the test light illuminate brightly?

Yes
  • Go To 5


No

5.(C13) A/C CLUTCH RELAY CONTROL CIRCUIT OPEN





CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.




Is the resistance below 5.0 ohms?

Yes
  • Go To 6


No

6.(C13) A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO GROUND





Is the resistance below 5.0 ohms?

Yes


No
  • Go To 7

7.PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.




Were there any problems found?

Yes


No
