P0440-GENERAL EVAP SYSTEM FAILURE

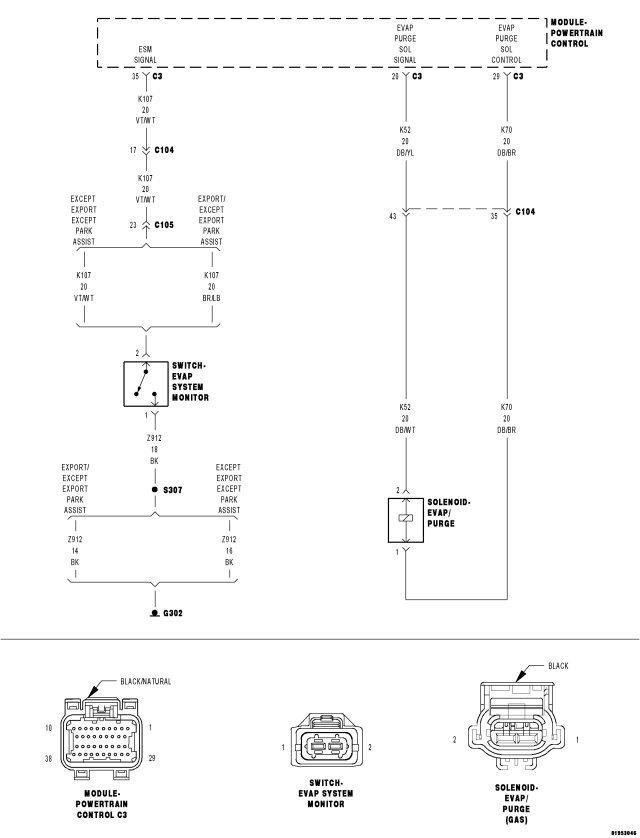

For a complete wiring diagram Refer to Section 8W.

Theory of Operation

The Evap Purge Monitor tests the integrity of the hoses/tube between the throttle body/intake and the fuel tank. The monitor is a two stage test and runs only after the Evap system passes the small leak test. Stage one is non-intrusive. The PCM monitors the purge vapor ratio and the ESM switch closed ratio. If the purge vapor ratio is above a calculated value, the monitor passes. If the ESM switch closed ratio is greater than calculated value when purge flow is greater than a minimum value, the monitor passes. Stage two is an intrusive test and runs only if stage one does not pass. The PCM commands the purge solenoid to flow at a specified rate to force the purge vapor ratio to update. The ratio is compared to a calibrated specification. If it is less than specified, a one trip failure is recorded. This test can detect if the purge hose is off, obstructed, or the purge valve is not operational.

• When Monitored:

  Engine running after a cold start with the difference between ECT and AAT is less than 10° C (19° F). Fuel Level between 12% and 88% full. Manifold vacuum greater than a calculated minimum value. Ambient Temperature between 4° C and 32° C (39° F and 89° F).

• Set Condition:

  When the monitor conditions are met, the PCM will ramp in purge flow. If the PCM does not sense an ESM switch closure after a calculated amount of purge flow accumulation, an error is detected. Two Trip Fault. Three good trips to turn off the MIL.

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

Diagnostic Test

• Testing complete.

• Go To 2

NOTE: Allow the vehicle to reach ambient temperature before continuing with this procedure.

NOTE: A loose gas cap could have caused this DTC to set. Make sure the gas cap is tight and in good condition.

NOTE: It may be necessary to drive the vehicle to meet the conditions to set this DTC, try to repeat the conditions in which the fault originally set by reviewing the Freeze Frame data.

• Go To 3

• Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Repair as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 4

• Repair the vacuum supply, hose/tube as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 5

NOTE: To continue testing you will need Miller Tool #8404 Evaporative Emission Leak Detector (EELD).

WARNING: Keep lit cigarettes, sparks, flames, and other ignition sources away from the test area to prevent the ignition of explosive gases, Keep the test area well ventilated.

NOTE: This is an optional method of checking the purge valve for leaks if the EELD is unavailable.

• Replace the Evap Purge Solenoid.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 6

• Go To 9

• Go To 7

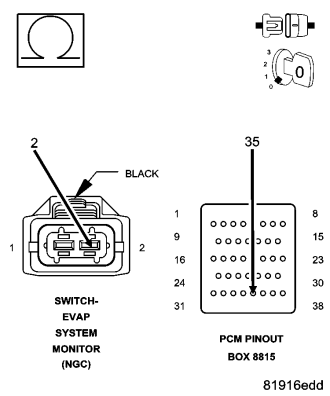

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

• Go To 8

• Repair the excessive resistance in the (K107) ESM Signal circuit.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

NOTE: The test light should illuminate brightly. Compare the brightness to that of a direct connection to B- (ground).

• Go To 14

• Repair the excessive resistance in the (Z910) Ground circuit.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

WARNING: Keep lit cigarettes, sparks, flames, and other ignition sources away from the test area to prevent the ignition of explosive gases. Keep the test area well ventilated.

NOTE: The fuel tank should have between 20% and 80% of fuel tank capacity to properly test the Evap system.

• Go To 10

• Go To 12

NOTE: A thorough visual inspection of the Evap system hoses, tubes, and connections may save time in your diagnosis. Look for any physical damage or signs of wetness at connections. The strong smell of fuel vapors may aid diagnosis also.

NOTE: The flow meter indicator ball will not move at this point.

NOTE: Make sure that smoke has filled the EVAP system by continuing to press the remote smoke/air start button, remove the vehicle fuel cap, and wait for the smoke to exit. Once smoke is indicated reinstall the fuel cap.

NOTE: For optimal performance, introduce smoke into the system for an additional 60 seconds; continue introducing smoke at 15 second intervals, as necessary.

NOTE: The EVAP System is divided into three zones. A leak from any of these zones can cause this DTC to set. The lists below specify the possible leak points in that specific zone. For further assistance see the Zone Identification Charts below.

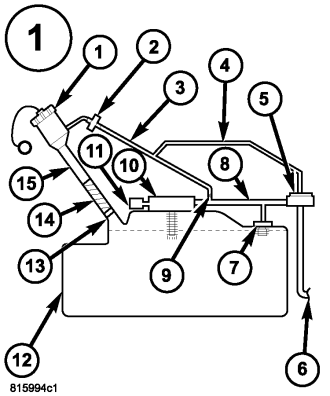

• ZONE 1

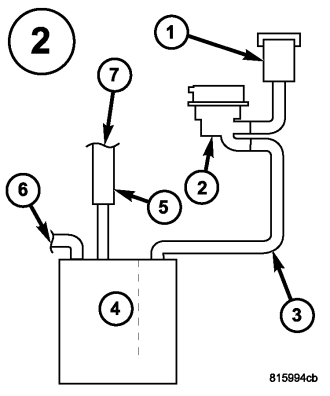

• ZONE 2

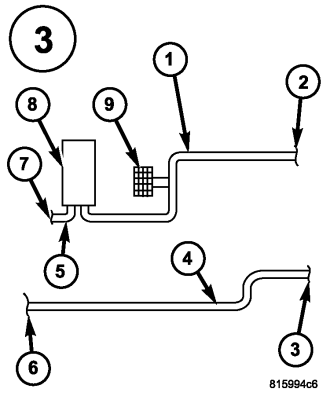

• ZONE 3

NOTE: Carefully inspect the vent side of the EVAP Canister. Due to the filtering system in the canister the smoke or dye may or may not be visible. Introducing smoke into the filtered side of the canister may assist in locating the leak.

• Go To 11

• If the leak is at a hose connection, remove the hose then reconnect the hose and check for a leak again. All other leaks repair as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 12

NOTE: The gas cap adapter is being used as a known good cap.

• Replace the Fuel Filler tube assembly.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Replace the gas cap.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Repair or replace as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Go To 13

• Repair and Replace as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) .

• Replace the Evap System Monitor Switch per Service Information.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) .

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

• Repair as necessary.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

• Replace and program the Powertrain Control Module per Service Information.
• Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
