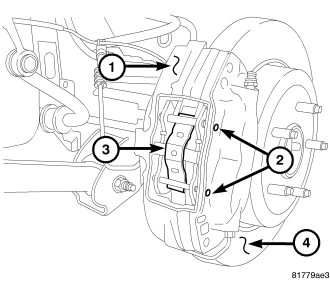

REAR - SRT8




NOTE: Brake pads need to have the shims and cooper paste applied. Paste is applied between the shim and the backing plate of the pads, and along the edges of the pads.


If installing rear brake pads, make sure beveled end of each pad lining is directed against the direction the rotor is rotating in when vehicle is moving forward, in other words, the rear pads need to have beveled end facing upward.











(Refer to 22 - TIRES/WHEELS - INSTALLATION)

NOTE: When NEW brake pads are installed, they must be burnished (seated) to the rotor. This must be done to ensure the proper performance of the replacement brake pads.



(Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/FLUID - STANDARD PROCEDURE)
