DESCRIPTION

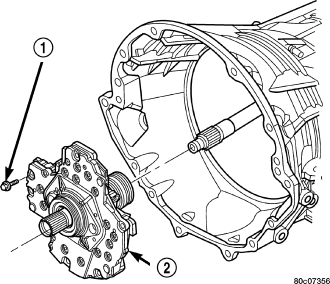

The oil pump (2) is located at the front of the transmission inside the bell housing and behind the transmission front cover.

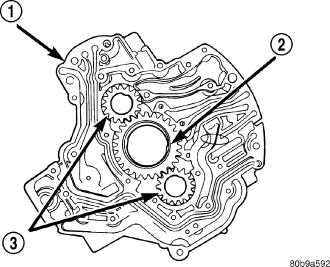

The oil pump consists of two independent pumps.

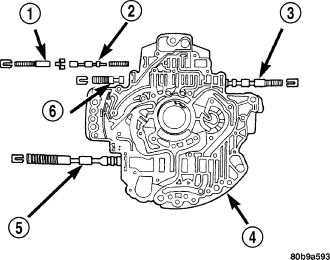

The oil pump also contains a number of valves. The converter clutch switch (3) and control valves (2), pressure regulator valve (5), and converter pressure limit valve (6) are all located in the oil pump valve body.

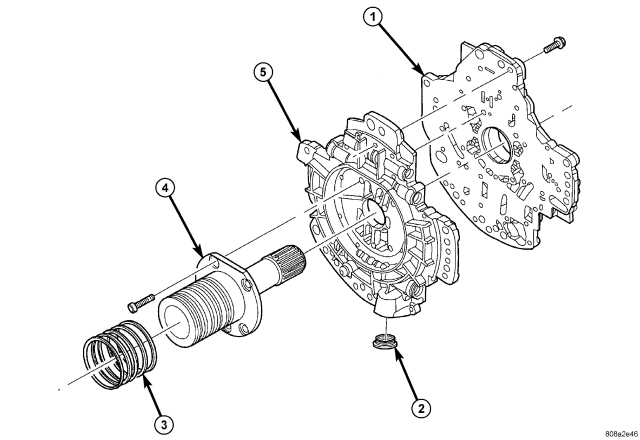

| Oil Pump Reaction Shaft |
| 1 - PUMP HOUSING |
4 - REACTION SHAFT SUPPORT |
| 2 - OIL FILTER SEAL |
5 - PUMP VALVE BODY |
| 3 - SEAL RING (5) |
A filter seal (2), and a bolt on reaction shaft (4) complete the oil pump assembly.
