B1BA5-AIRBAG SQUIB CONFIGURATION MISMATCH

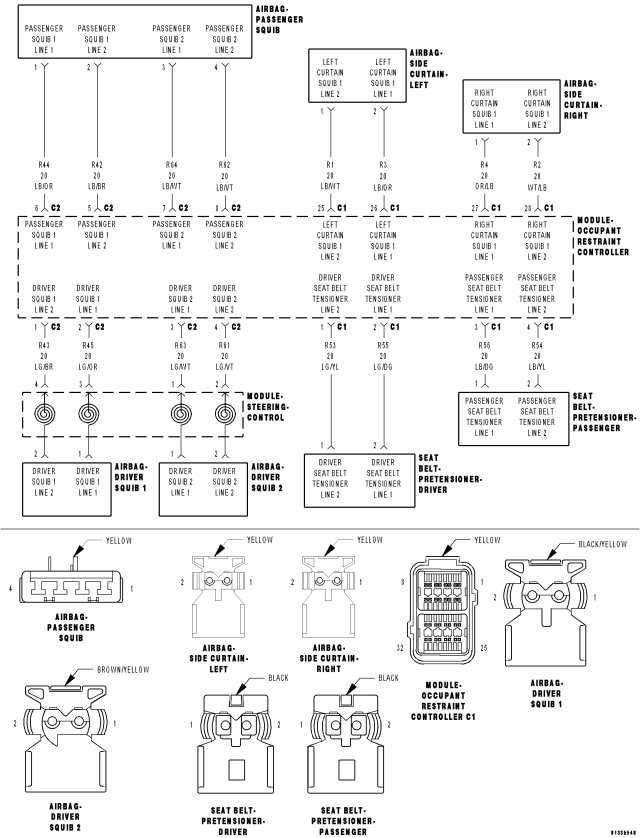

For a complete wiring diagram Refer to Section 8W.


  • When Monitored:

    With the ignition on.

  • Set Condition:

    If an Occupant Restraint Controller (ORC) configured for vehicles without side airbags is installed in a vehicle with side airbags.


Possible Causes

POWERTRAIN CONTROL MODULE (PCM)

OCCUPANT RESTRAINT CONTROLLER (ORC)




Diagnostic Test

1.VERIFY THAT DTC B1BA5 AIRBAG SQUIB CONFIGURATION MISMATCH IS ACTIVE

NOTE: Ensure the battery is fully charged.

NOTE: When reconnecting Airbag system components, the ignition must be turned off and the battery must be disconnected.





Does the scan tool display active: B1BA5 AIRBAG SQUIB CONFIGURATION MISMATCH?

Yes
  • Go To 2


No
  • Go To 5

2.VERIFY THAT VEHICLE IS EQUIPPED WITH OCCUPANT CLASSIFICATION SYSTEM (OCS)




Is the vehicle equipped with an Occupant Classification System (OCS)?

Yes
  • Go To 3


No
  • Replace the ORC in accordance with Service Information.
  • Perform ORC VERIFICATION TEST - VER 1.

3.CHECK ORC PART NUMBER WITH SCAN TOOL



Is the part number correct for the vehicle?

Yes
  • Go To4


No
  • Replace the ORC in accordance with Service Information.
  • Perform ORC VERIFICATION TEST - VER 1.

4.CHECK VIN WITH SCAN TOOL



Is the correct VIN displayed?

Yes
  • Replace the ORC in accordance with Service Information.
  • Perform ORC VERIFICATION TEST - VER 1.


No
  • Replace the Powertrain Control Module (PCM) in accordance with Service Information.
  • Perform ORC VERIFICATION TEST - VER 1.

5.TEST FOR INTERMITTENT CONDITION



WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.






WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.



WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the following steps.







Does the scan tool display any ACTIVE DTCs?

Yes
  • Select appropriate symptom from Symptom List.


No
  • No problem found at this time. Erase all codes before returning vehicle to customer.
