*DIAGNOSTIC CAN C (+) SHORTED TO CAN C DIAGNOSTIC (-)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When the scan tool queries the FCM.
Set Condition:
The scan tool has detected a shorted together condition on the Diagnostic CAN C circuits.

Possible Causes

(D72) DIAGNOSTIC CAN C (+) CIRCUIT SHORTED TO (D71) DIAGNOSTIC CAN C (-) CIRCUIT

FRONT CONTROL MODULE

1.CHECK THE STATUS OF THE ERROR MESSAGE

NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be displayed.

NOTE: Ensure the scan tool is updated to the latest software.

Does the scan tool display this same error message?

Yes

The conditions that caused this error message to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

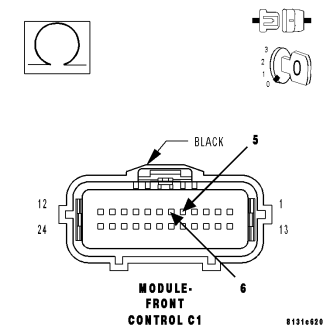

2.(D72) DIAGNOSTIC CAN C (+) CIRCUIT SHORTED TO (D71) DIAGNOSTIC CAN C (-) CIRCUIT

Is the resistance below 100.0 ohms?

Yes

Repair the (D72) Diagnostic CAN C (+) circuit for a short to the (D71) Diagnostic CAN C (-) circuit.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

Inspect the wiring and connectors for damage or shorted circuits. If ok, replace the Front Control Module in accordance with the service information.
Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
