FRONT

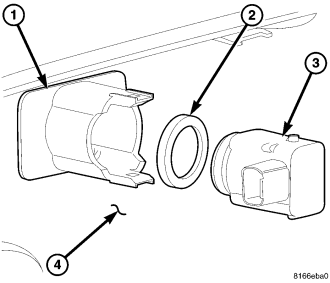

NOTE: The park assist sensors (3) and the sensor spacers (2) are each available for separate service replacement. The sensor brackets (1) are bonded and integral to the back side of the front bumper fascia (4).

NOTE: Production and all service replacement O-ring spacers are tapered. The wide side (base) of the O-ring should be seated against the sensor housing and the narrow side should be oriented toward the outer surface of the sensor membrane and the front fascia.

NOTE: Be certain that each sensor membrane is properly centered in the openings of the front fascia and that the O-ring spacers are not pinched. Improper centering or pinched O-rings can be detrimental to proper park assist sensor operation.
