REAR

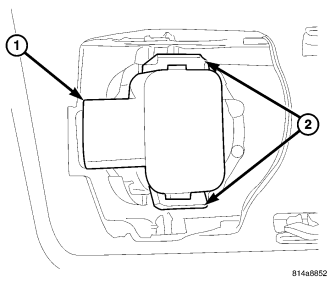

NOTE: The park assist sensors, the sensor O-ring spacers and the sensor brackets are each available for separate service replacement. The following service procedure can be used for reassembling any or all of these components to the rear bumper fascia.

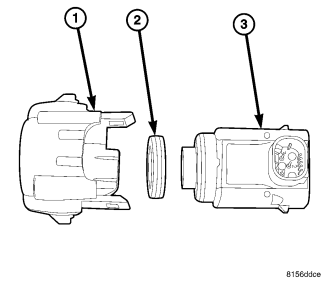

NOTE: Production and all service replacement O-ring spacers are tapered. The wide side (base) of the O-ring should be seated against the sensor housing and the narrow side should be oriented toward the outer surface of the sensor membrane and the rear fascia molding.

NOTE: Be certain that each sensor membrane is properly centered in the openings of the rear fascia molding and that the O-ring spacers are not pinched. Improper centering or pinched O-rings can be detrimental to proper park assist sensor operation.
