B211A-IGNITION RUN/ACC/SPAD CONTROL CIRCUIT LOW

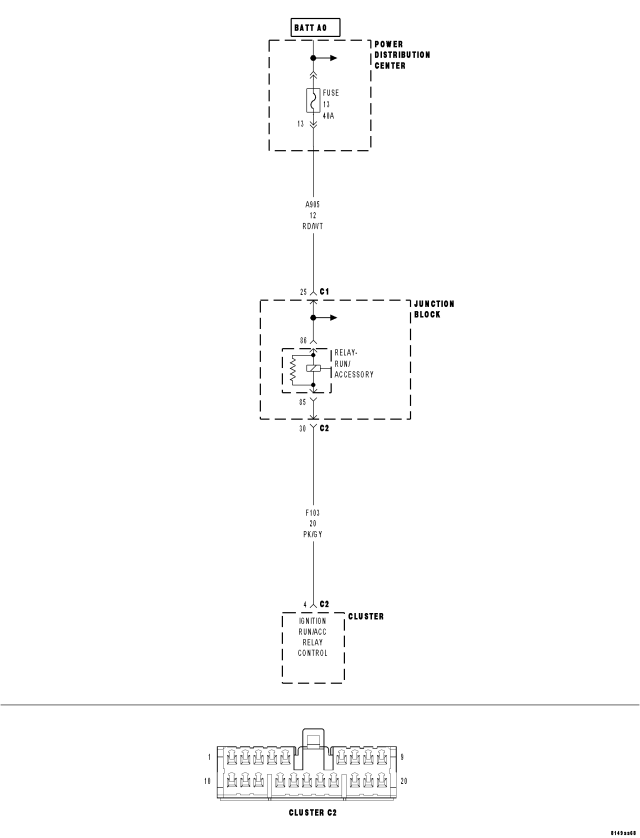

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously
Set Condition:
When the Cluster senses a low condition on the (F103) Ignition Run/Acc Relay Control circuit for over 10 seconds, this code will set.

Possible Causes

(F103) IGNITION RUN/ACC RELAY CONTROL CIRCUIT LOW

JUNCTION BLOCK

INSTRUMENT CLUSTER

1.TEST FOR INTERMITTENT CONDITION

Does the scan tool display: B211A-IGNITION RUN/ACC CONTROL CIRCUIT LOW?

Yes

The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

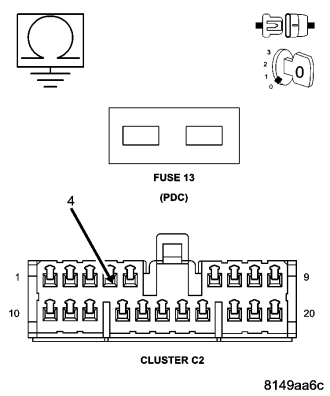

2.IGNITION RUN/ACC RELAY SHORTED

Is the resistance below 1000.0 ohms?

No

Replace the Instrument Cluster in accordance with Service Information.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

Yes

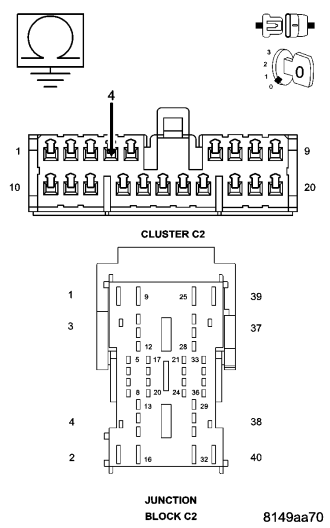

3.(F103) IGNITION RUN/ACC RELAY CONTROL CIRCUIT SHORT TO GROUND

Is the resistance below 1000.0 ohms?

Yes

Repair the (F103) Ignition Run/ACC Relay Control circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

Replace the Junction Block in accordance with Service Information.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
