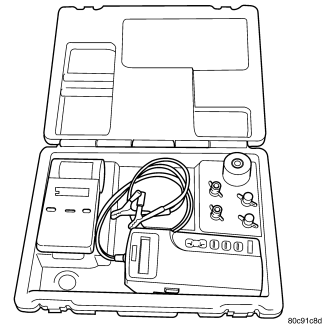

MICRO 420 BATTERY TESTER



Always use the Micro 420 Instruction Manual that was supplied with the tester as a reference. If the Instruction Manual is not available the following procedure can be used:

WARNING: Always wear appropriate eye protection and use extreme caution when working with batteries.


BATTERY TESTING


(Refer to 8 - ELECTRICAL/BATTERY SYSTEM - CLEANING)
The preferred test position is at the battery terminal

NOTE: Multiple batteries connected in parallel must have the ground cable disconnected to perform a battery test. Failure to disconnect may result in false battery test readings.


inout

CAUTION: If REPLACE BATTERY is the result of the test, this may mean a poor connection between the vehicle's cables and battery exists. After disconnecting the vehicle's battery cables from the battery, retest the battery using the OUT-OF-VEHICLE test before replacing.



BATTERY TEST RESULTS

GOOD BATTERY
  		Return to service

GOOD - RECHARGE
  		Fully charge battery and return to service

CHARGE & RETEST
  		Fully charge battery and retest battery

REPLACE BATTERY
  		Replace the battery and retest complete system

BAD-CELL REPLACE
  		Replace the battery and retest complete system


NOTE: The SERVICE CODE is required on every warranty claim submitted for battery replacement.
