B1D07 – MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK – DDM

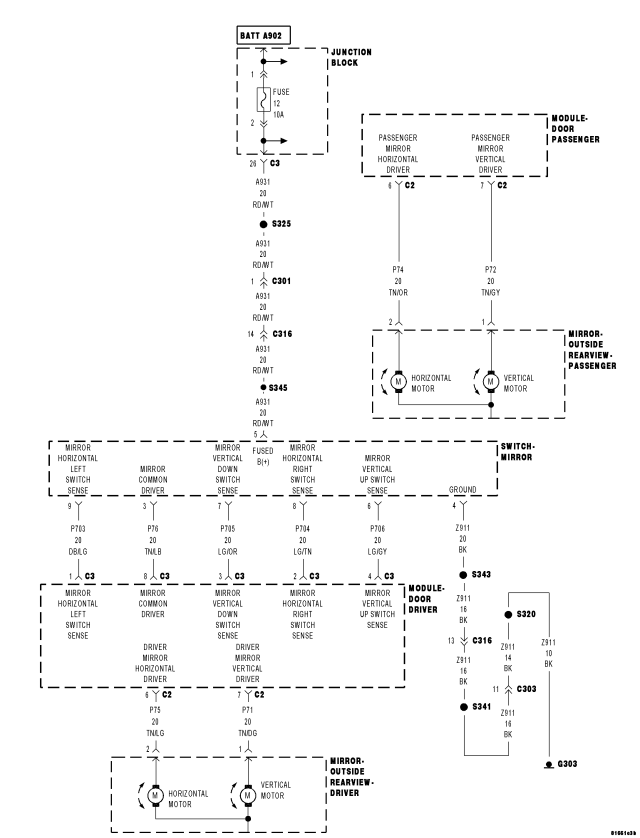

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
When mirror operation is requested.
- Set Condition:
If the Driver Door Module detects that the Mirror Switch is stuck in the same position for more than 30 seconds.
| Possible Causes |
| MIRROR SWITCH |
| DRIVER DOOR MODULE |
Diagnostic Test
1.VERIFY IF DTC B1D04 MIRROR ADJUST SWITCH INPUT CIRCUIT/PERFORMANCE IS ACTIVEDoes the scan tool display: B1D04 MIRROR ADJUST SWITCH INPUT CIRCUIT/PERFORMANCE?
Yes
- Diagnose and repair the DTC. Refer to the Table of Contents in this section for a complete list of Power Mirror System DTCs.
No
- Go To 2
2.TEST THE MIRROR SWITCH
(Refer to 8 - ELECTRICAL/POWER MIRRORS/POWER MIRROR SWITCH - DIAGNOSIS AND TESTING)
Does the switch pass the test in all positions?
Yes
- Go To 3
No
- Replace the Mirror Switch in accordance with the Service information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
3.VERIFY THAT DTC B1D07 MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK IS STILL ACTIVE
Does the scan tool display: B1D07 MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK?
Yes
- Replace the Driver Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. If the conditions returns, replace the switch.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
