*NO RESPONSE FROM WCM (SENTRY KEY REMOTE ENTRY MODULE)

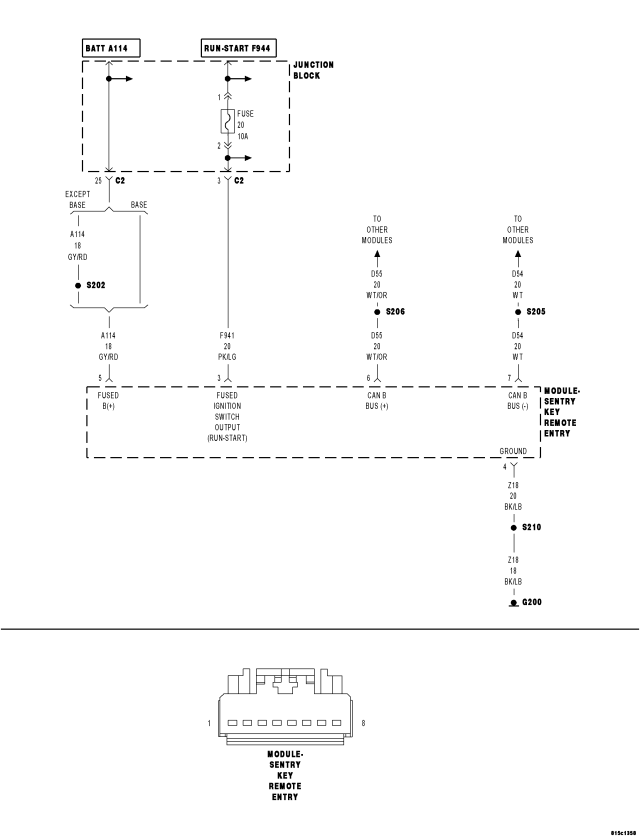

For a complete wiring diagram Refer to Section 8W.



Possible Causes

(A114) FUSED B(+) CIRCUIT OPEN OR SHORTED

(Z18) GROUND CIRCUIT OPEN

(F941) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED

(D55) AND (D54) CAN B BUS CIRCUITS OPEN

SENTRY KEY REMOTE ENTRY MODULE




Diagnostic Test

1.TEST FOR INTERMITTENT CONDITION


NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.



NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.



Does the scan tool display a red X next to the module?

Yes
  • Go To 2


No
  • The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

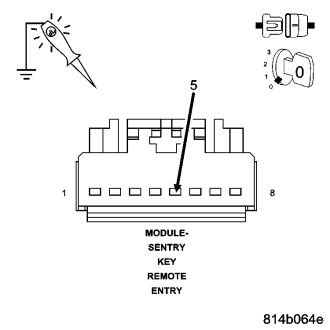

2.(A114) FUSED B(+) CIRCUIT OPEN OR SHORTED







Does the test light illuminate brightly?

Yes
  • Go To 3


No
  • Repair the (A114) Fused B(+) circuit for an open or short.
  • Perform SKREEM VERIFICATION TEST.

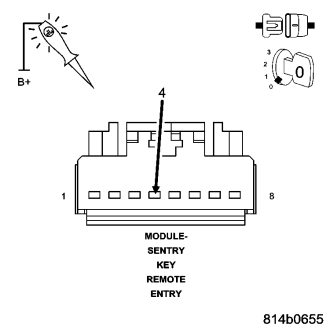

3.(Z18) GROUND CIRCUIT OPEN





Does the test light illuminate brightly?

Yes
  • Go To 4


No
  • Repair the (Z18) ground circuit for an open.
  • Perform SKREEM VERIFICATION TEST.

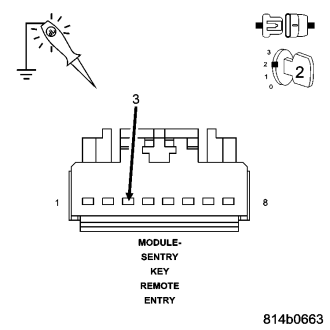

4.(F941) FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED






Does the test light illuminate brightly?

Yes
  • Go To 5


No
  • Repair the (F941) Fused Ignition Switch Output circuit for an open or short.
  • Perform SKREEM VERIFICATION TEST.

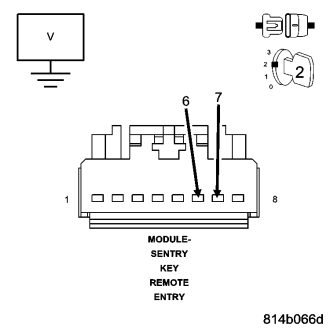

5.(D55) AND (D54) CAN B BUS CIRCUITS OPEN



NOTE: One open circuit will not cause this condition.





Is there any voltage present on either circuit?

Yes
  • Replace the Sentry Key Remote Entry Module in accordance with the service information.
  • Perform SKREEM VERIFICATION TEST.


No
  • Repair the (D55) and (D54) CAN B Bus circuits for an open. Inspect the connector for damage.
  • Perform SKREEM VERIFICATION TEST.
