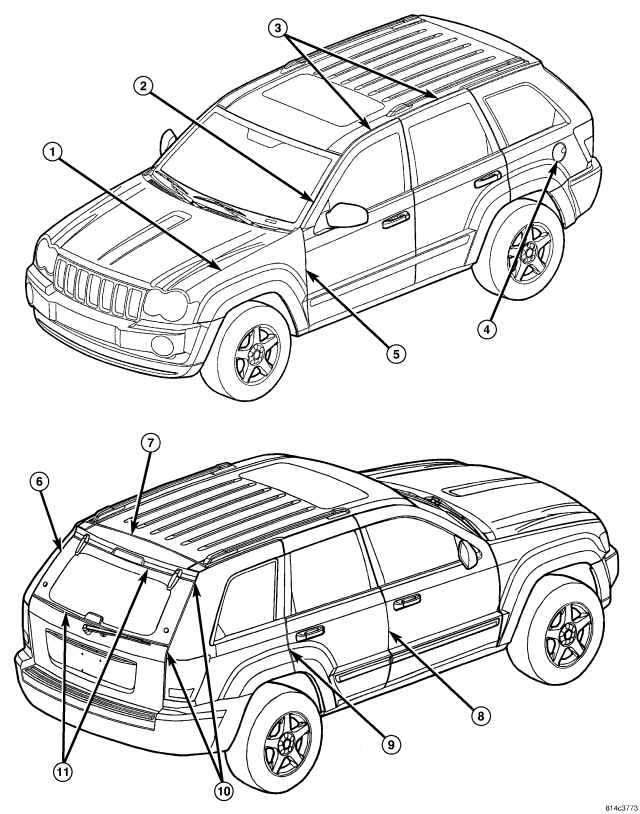

GAP AND FLUSH SPECIFICATIONS






GAP AND FLUSH


NOTE: All measurements are in mm.


DIMENSION
  		 DESCRIPTION
  		 GAP
  		 FLUSH

1
  		 HOOD TO FENDER
  		 4.0 ± 1.5
PARALLEL WITHIN 1.5
  		 HOOD UNDERFLUSH
-0.5 ± 1.5
PARALLEL WITHIN 1.5

2
  		 WINDSHIELD MOLDING TO FRONT DOOR
  		 6.0 ± 2.0
  		 MOLDING OVERFLUSH
3.0 ± 1.0

3
  		 FRONT AND REAR DOORS TO ROOF
  		 6.0 ± 1.5
PARALLEL WITHIN 2.5
  		 DOORS OVERFLUSH
2.0 ± 1.5

4
  		 FUEL DOOR TO BODY SIDE
  		 3.0 ± 1.0
  		 FUEL DOOR UNDERFLUSH
-0.5 ± 1.0

5
  		 FENDER TO FRONT DOOR
  		 4.5 ± 1.25
PARALLEL WITHIN 1.25
  		 FENDER OVERFLUSH
0.5 ± 1.0

6
  		 FLIPPER GLASS TO BODY SIDE
  		 4.0 ± 1.5
PARALLEL WITHIN 1.5
SIDE TO SIDE WITHIN 1.5
  		 GLASS UNDERFLUSH
-2.5 ± 2.5

7
  		 LIFTGATE TO ROOF
  		 9.0 ± 2.0
  		 LIFTGATE UNDERFLUSH
-1.0 ± 1.5
PARALLEL WITHIN 1.5

8
  		 FRONT DOOR TO REAR DOOR
  		 4.5 ± 1.0
PARALLEL WITHIN 1.0
  		 0.0 ± 1.25
PARALLEL WITHIN 1.5

9
  		 REAR DOOR TO BODY SIDE
  		 4.5 ± 1.0
PARALLEL WITHIN 1.0
  		 0.0 ± 1.25
PARALLEL WITHIN 1.5

10
  		 LIFTGATE TO BODY SIDE
  		 4.0 ± 1.5
PARALLEL WITHIN 1.5
SIDE TO SIDE WITHIN 1.5
  		 LIFTGATE UNDERFLUSH
-0.5 ± 1.5

11
  		 FLIPPER GLASS TO LIFTGATE
  		 5.0 ± 1.5
  		 —
