REMOVAL


(Refer to 23 - BODY/SEATS - WARNING)
(Refer to 23 - BODY/SEATS/SEAT CUSHION / COVER - FRONT - REMOVAL)

Power




(Refer to 23 - BODY/SEATS/SEAT RISER - FRONT - REMOVAL)

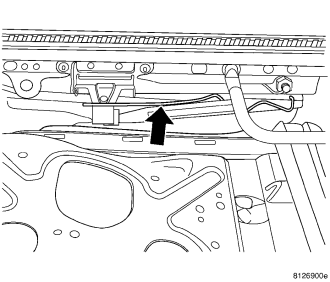

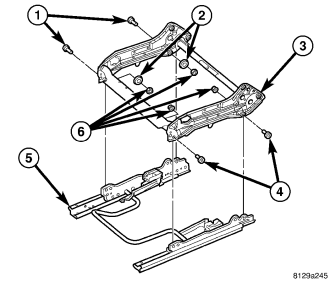

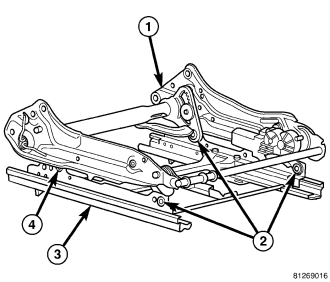

NOTE: Bolt (4) is a different size from the other three bolts (2). Note the location for proper installation.

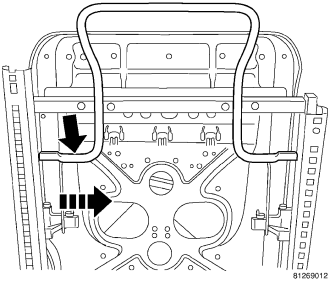

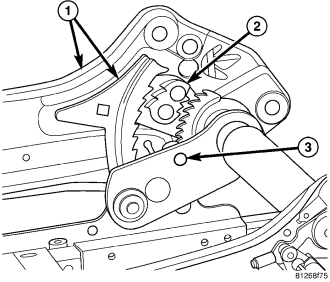

WARNING: A seat structure that has seen significant load may have the locking mechanism activated and may exhibit the following symptoms:

  • Locking pawl (2) loose
  • Locking pawl (2) engaged into the seat frame sidemember (1)
  • Height adjuster only works on outboard side
  • Broken or missing shear pin (3)

If any one or more of these symptoms exist replace the height adjuster assembly. Do not attempt any repairs. Failure to follow these instructions may result in personal injury or death.


Manual
