ASSEMBLY






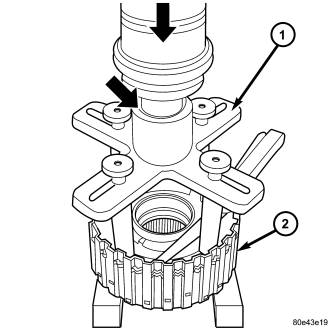

Input Clutch K3 Components


1 - SNAP-RING
  		6 - PISTON

2 - MULTIPLE DISC PACK
  		7 - SEALING RING

3 - DISK SPRING
  		8 - OUTER DISC CARRIER

4 - SNAP-RING
  		9 - MULTI-USE SPRING COMPRESSOR 8900

5 - SPRING PLATE






CAUTION: When working with double sided friction discs, an externally lugged steel plate is installed first, followed by a friction disc, and continuing on until all the required discs are installed. When working with single sided friction discs, an externally lugged disc is installed first, followed by an internally lugged disc, and continuing on until all the required discs are installed. All single sided discs are installed with the friction side up.

NOTE: Pay attention to the sequence of discs. If the original clutch discs are reused, be sure to return the disc identified on disassembly as belonging on top of the disk spring (3) to its original location.

NOTE: Place new friction multiple-discs in ATF fluid for one hour before installing.

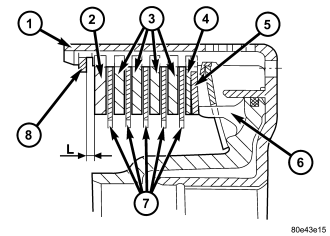

1 - OUTER DISC CARRIER

2 - OUTER MULTIPLE DISC - 4.0 MM (0.158 IN.)

3 - OUTER MULTIPLE DISC - 2.8 MM (0.110 IN.)

4 - OUTER MULTIPLE DISC - 1.8 MM (0.079 IN.)

5 - DISC SPRING

6 - PISTON

7 - FRICTION DISCS - 2.1 MM (0.083 IN.)

8 - SNAP-RING

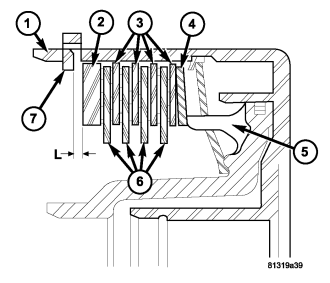

1 - OUTER DISC CARRIER

2 - OUTER MULTIPLE DISC - 4.0 MM (0.158 IN.)

3 - OUTER MULTIPLE DISCS

4 - DISC SPRING

5 - PISTON

6 - INNER MULTIPLE DISCS

7 - SNAP-RING
