REMOVAL

NOTE: Do not pry on oil pan or oil pan gasket. Gasket is integral to engine windage tray and does not come out with oil pan.

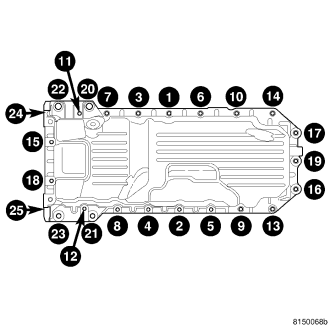

NOTE: The horizontal M10 fasteners are 5 mm longer in length, and must be reinstalled in original locations.

NOTE: When the oil pan is removed, a new oil pan gasket/windage tray assembly must be installed. The old gasket cannot be reused.
