REMOVAL

CAUTION: The piston must be at TDC, and both valves closed on the cylinder to be serviced.

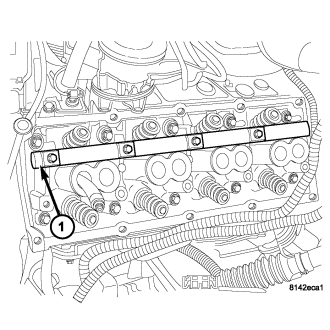

NOTE: If removing intake valve spring, install special tool# 9070, pushrod retaining plate (1), to retain the intake pushrods (2).

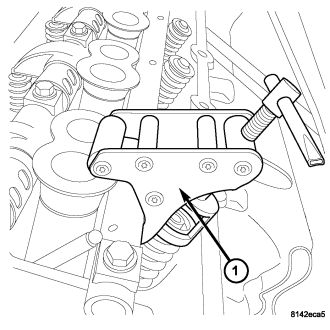

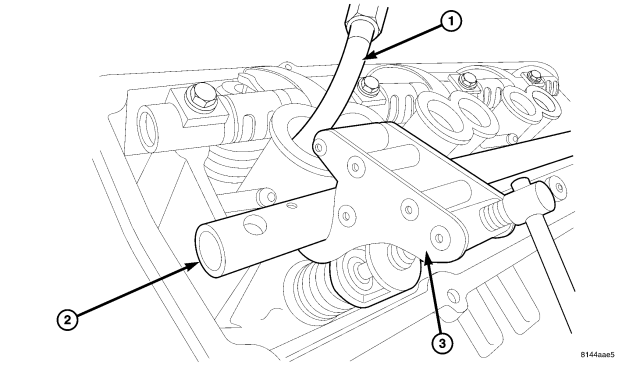

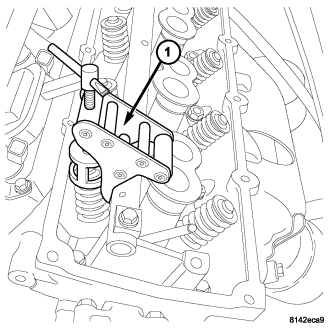

NOTE: All valve springs and seals are removed in the same manner.

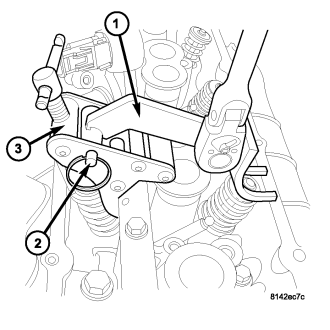

NOTE: Tap the top of the valve spring retainer to loosen the spring retainers locks.

NOTE: The valve springs are interchangeable between intake and exhaust.
