DESCRIPTION

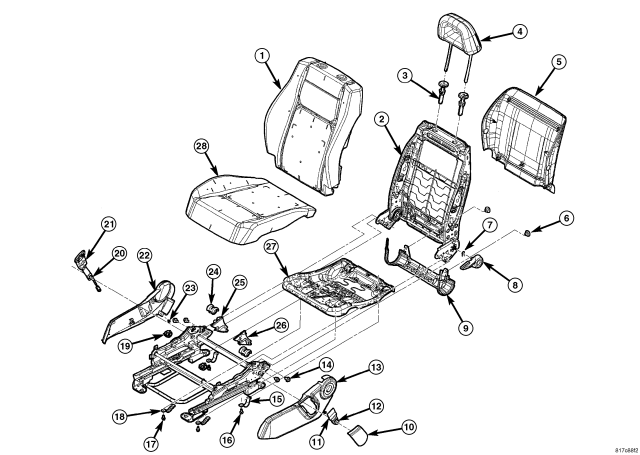

2-WAY DRIVER SEAT


1 - SEAT BACK CUSHION/COVER
  		 15 - SEAT CUSHION STRAPS - REAR (2)

2 - SEAT BACK FRAME
  		 16 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N·m (8 ft. lbs.)

3 - HEADREST SLEEVES
  		 17 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N·m (8 ft. lbs.)

4 - HEADREST
  		 18 - SEAT CUSHION STRAPS - FRONT (2)

5 - SEAT BACK TRIM PANEL
  		 19 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)

6 - PUSH PIN FASTENERS (2)
  		 20 - SEAT BELT BUCKLE BOLT 45 N·m (33 ft. lbs.)

7 - RECLINER HANDLE RETAINER CLIP
  		 21 - SEAT BELT BUCKLE

8 - RECLINER HANDLE
  		 22 - INBOARD SIDE SHIELD - OUTER

9 - SUB PANEL BASE TRIM
  		 23 - SIDE SHIELD SCREWS (one per side)

10 - SEAT BELT ANCHOR TRIM
  		 24 - SEAT CUSHION STRAP BUSHINGS - REAR (2)

11 - SEAT BELT ANCHOR
  		 25 - INBOARD SIDE SHIELD - INNER

12 - SEAT BELT ANCHOR BOLT 32 N·m (23.5 ft. lbs.)
  		 26 - OUTBOARD SIDE SHIELD - INNER

13 - OUTBOARD SIDE SHIELD - OUTER
  		 27 - SEAT CUSHION PAN

14 - BACK ASSEMBLY BOLTS (4) 40 N·m (30 ft. lbs.)

WARNING: Discard and replace the seat back bolts (14) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

 		 28 - SEAT CUSHION/COVER

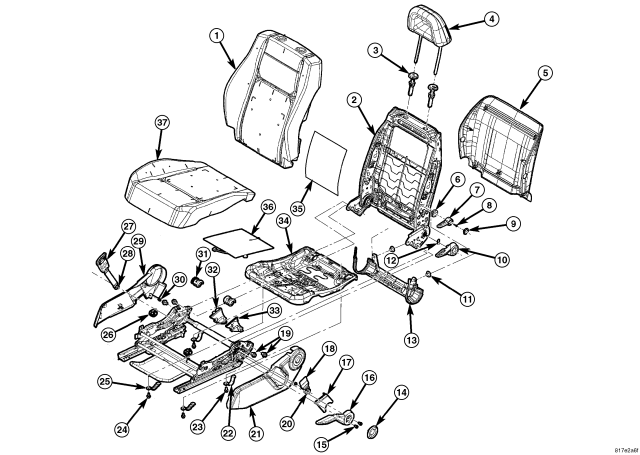

4-WAY DRIVER SEAT


1 - SEAT BACK CUSHION/COVER
  		 20 - SEAT BELT ANCHOR BOLT 32 N·m (23.5 ft. lbs.)

2 - SEAT BACK FRAME
  		 21 - OUTBOARD SIDE SHIELD - OUTER

3 - HEADREST SLEEVES
  		 22 - SEAT CUSHION STRAPS - REAR (2)

4 - HEADREST
  		 23 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N·m (8 ft. lbs.)

5 - SEAT BACK TRIM PANEL
  		 24 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N·m (8 ft. lbs.)

6 - LUMBAR HANDLE GROMMET
  		 25 - SEAT CUSHION STRAPS - FRONT (2)

7 - LUMBAR HANDLE
  		 26 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)

8 - LUMBAR HANDLE SCREW
  		 27 - SEAT BELT BUCKLE

9 - LUMBAR HANDLE CAP
  		 28 - SEAT BELT BUCKLE BOLT 45 N·m (33 ft. lbs.)

10 - RECLINER HANDLE
  		 29 - INBOARD SIDE SHIELD - OUTER

11 - PUSH PIN FASTENERS (2)
  		 30 - SIDE SHIELD SCREWS (one per side)

12 - RECLINER HANDLE RETAINER CLIP
  		 31 - SEAT CUSHION STRAP BUSHINGS - REAR (2)

13 - SUB PANEL BASE TRIM
  		 32 - INBOARD SIDE SHIELD - INNER

14 - LIFT HANDLE CAP
  		 33 - OUTBOARD SIDE SHIELD - INNER

15 - LIFT HANDLE SCREWS (2)
  		 34 - SEAT CUSHION PAN

16 - LIFT HANDLE
  		 35 - HEATING ELEMENT - SEAT BACK

17 - SEAT BELT ANCHOR TRIM
  		 36 - HEATING ELEMENT - SEAT CUSHION

18 - SEAT BELT ANCHOR
  		 37 - SEAT CUSHION/COVER

19 - BACK ASSEMBLY BOLTS (4) 40 N·m (30 ft. lbs.)

WARNING: Discard and replace the seat back bolts (19) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

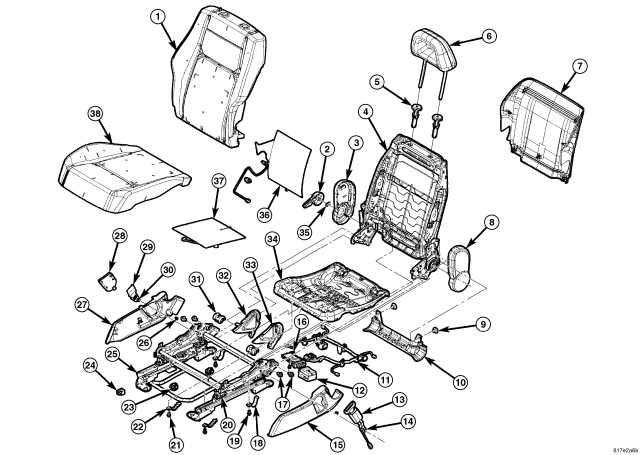

PASSENGER FOLD FLAT SEAT


1 - SEAT BACK CUSHION/COVER
  		 20 - OCS STRAIN GAUGE (4)

NOTE:

  • Center OCS Strain Gauge stud nut 45 N·m (33 ft. lbs.)
  • Outer rail bolts/nuts 28 N·m (21 ft. lbs.)


2 - RECLINER HANDLE
  		 21 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N·m (8 ft. lbs.)

3 - OUTBOARD RECLINER SHIELD
  		 22 - SEAT CUSHION STRAPS - FRONT (2)

4 - SEAT BACK FRAME
  		 23 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)

5 - HEADREST SLEEVES
  		 24 - TRACK POSITION SENSOR

6 - HEADREST
  		 25 - SEAT ADJUSTER ASSEMBLY

7 - SEAT BACK TRIM PANEL
  		 26 - SIDE SHIELD SCREWS (one per side)

8 - INBOARD RECLINER SHIELD
  		 27 - OUTBOARD SIDE SHIELD - OUTER

9 - PUSH PIN FASTENERS (2)
  		 28 - SEAT BELT ANCHOR TRIM

10 - SUB PANEL BASE TRIM
  		 29 - SEAT BELT ANCHOR

11 - WIRE HARNESS
  		 30 - SEAT BELT ANCHOR BOLT 32 N·m (23.5 ft. lbs.)

12 - HEATED SEAT MODULE
  		 31 - SEAT CUSHION STRAP BUSHINGS - REAR (2)

13 - SEAT BELT BUCKLE
  		 32 - OUTBOARD SIDE SHIELD - INNER

14 - SEAT BELT BUCKLE BOLT 45 N·m (33 ft. lbs.)
  		 33 - INBOARD SIDE SHIELD - INNER

15 - INBOARD SIDE SHIELD - OUTER
  		 34 - SEAT CUSHION PAN

16 - OCS MODULE
  		 35 - RECLINER HANDLE RETAINER CLIP

17 - BACK ASSEMBLY BOLTS (4) 40 N·m (30 ft. lbs.)

WARNING: Discard and replace the seat back bolts (17) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

 		 36 - HEATING ELEMENT - SEAT BACK

18 - SEAT CUSHION STRAPS - REAR (2)
  		 37 - HEATING ELEMENT - SEAT CUSHION

19 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N·m (8 ft. lbs.)
  		 38 - SEAT CUSHION/COVER

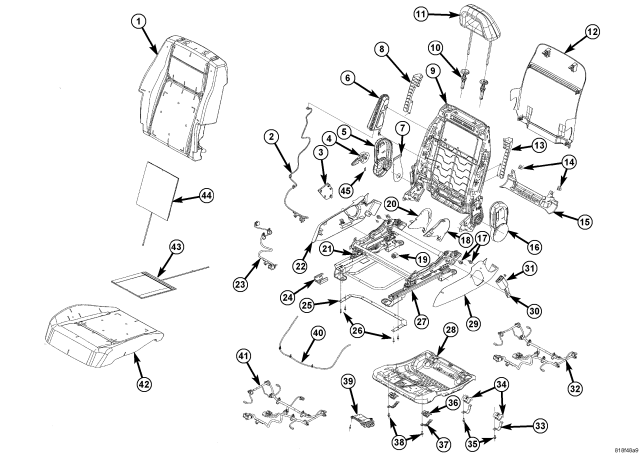

PASSENGER FOLD FLAT W/AIR BAG


1 - SEAT BACK CUSHION/COVER
  		 24 - TRACK RAIL COVER (2)

2 - SEAT AIR BAG WIRE HARNESS
  		 25 - CROSS BRACE TRACK BRACKET

3 - SEAT BELT ANCHOR TRIM
  		 26 - CROSS BRACE TRACK BRACKET SCREWS (4)

4 - RECLINER HANDLE
  		 27 - SEAT ADJUSTER ASSEMBLY

5 - OUTBOARD RECLINER SHIELD
  		 28 - SEAT CUSHION PAN

6 - SEAT AIR BAG 10 N·m (90 in. lbs.)
  		 29 - OUTBOARD SIDE SHIELD - OUTER

7 - WIRE ROUTING SHIELD
  		 30 - SEAT BELT BUCKLE BOLT 45 N·m (33 ft. lbs.)

8 - SEAT AIR BAG BEZEL
  		 31 - SEAT BELT BUCKLE

9 - SEAT BACK FRAME
  		 32 - WIRE HARNESS

10 - HEADREST SLEEVES
  		 33 - SEAT CUSHION STRAPS - REAR (2)

11 - HEADREST
  		 34 - SEAT CUSHION STRAP BUSHINGS - REAR (2)

12 - SEAT BACK TRIM PANEL
  		 35 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N·m (8 ft. lbs.)

13 - SEAT AIR BAG BEZEL
  		 36 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)

14 - PUSH PIN FASTENERS (2)
  		 37 - SEAT CUSHION STRAPS - FRONT (2)

15 - SUB PANEL BASE TRIM
  		 38 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N·m (8 ft. lbs.)

16 - INBOARD RECLINER SHIELD
  		 39 - OCS MODULE

17 - BACK ASSEMBLY BOLTS (4) 40 N·m (30 ft. lbs.)

WARNING: Discard and replace the seat back bolts (17) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

 		 40 - RECLINER CABLE

18 - INBOARD SIDE SHIELD - INNER
  		 41 - WIRE HARNESS

19 - TRACK POSITION SENSOR
  		 42 - SEAT CUSHION/COVER

20 - OUTBOARD SIDE SHIELD - INNER
  		 43 - SEAT CUSHION HEAT ELEMENT

21 - OCS STRAIN GAUGE (4)

NOTE:

  • Center OCS Strain Gauge stud nut 45 N·m (33 ft. lbs.)
  • Outer rail bolts/nuts 28 N·m (21 ft. lbs.)

 		 44 - SEAT BACK HEAT ELEMENT

22 - OUTBOARD SIDE SHIELD - OUTER
  		 45 - RECLINER HANDLE RETAINER CLIP

23 - WIRE HARNESS

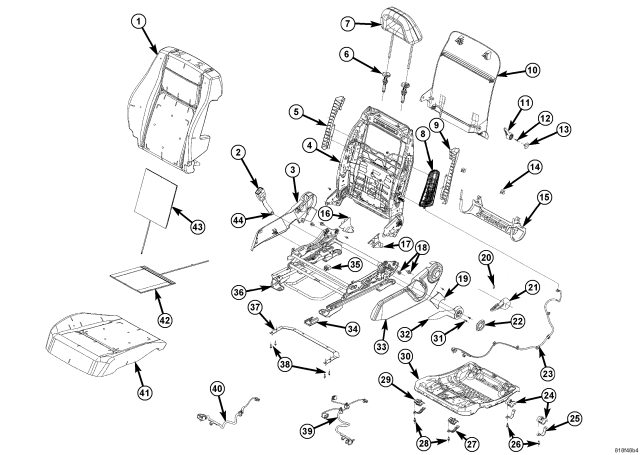

4-WAY DRIVER W/AIR BAG


1 - SEAT BACK CUSHION/COVER
  		 23 - SEAT AIR BAG HARNESS

2 - SEAT BELT BUCKLE
  		 24 - SEAT CUSHION STRAP BUSHINGS - REAR (2)

3 - INBOARD SIDE SHIELD - OUTER
  		 25 - SEAT CUSHION STRAPS - REAR (2)

4 - SEAT BACK FRAME
  		 26 - SEAT CUSHION STRAP BOLTS - REAR (2) 11 N·m (8 ft. lbs.)

5 - SEAT AIR BAG BEZEL
  		 27 - SEAT CUSHION STRAPS - FRONT (2)

6 - HEADREST SLEEVES
  		 28 - SEAT CUSHION STRAP BOLTS - FRONT (2) 11 N·m (8 ft. lbs.)

7 - HEADREST
  		 29 - SEAT CUSHION STRAP BUSHINGS - FRONT (2)

8 - SEAT AIR BAG 10 N·m (90 in. lbs.)
  		 30 - SEAT CUSHION PAN

9 - SIDE IMPACT AIR BAG (SIAB) BEZEL
  		 31 - LIFT HANDLE SCREWS (2)

10 - SEAT BACK TRIM PANEL
  		 32 - LIFT HANDLE

11 - LUMBAR HANDLE
  		 33 - OUTBOARD SIDE SHIELD - OUTER

12 - LUMBAR HANDLE SCREW
  		 34 - TRACK RAIL COVER (2)

13 - LUMBAR HANDLE CAP
  		 35 - TRACK POSITION SENSOR

14 - PUSH PIN FASTENERS (2)
  		 36 - SEAT ADJUSTER ASSEMBLY

15 - SUB PANEL BASE TRIM
  		 37 - CROSS BRACE TRACK BRACKET

16 - INBOARD SIDE SHIELD - INNER
  		 38 - CROSS BRACE TRACK BRACKET SCREWS (4)

17 - OUTBOARD SIDE SHIELD - INNER
  		 39 - WIRE HARNESS

18 - BACK ASSEMBLY BOLTS (4) 40 N·m (30 ft. lbs.)

WARNING: Discard and replace the seat back bolts (18) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

 		 40 - WIRE HARNESS

19 - SEAT BELT ANCHOR TRIM
  		 41 - SEAT CUSHION/COVER

20 - RECLINER HANDLE RETAINER CLIP
  		 42 - SEAT CUSHION HEAT ELEMENT

21 - RECLINER HANDLE
  		 43 - SEAT BACK HEAT ELEMENT

22 - LIFT HANDLE CAP
  		 44 - SEAT BELT BUCKLE BOLT 45 N·m (33 ft. lbs.)
