ASSEMBLY

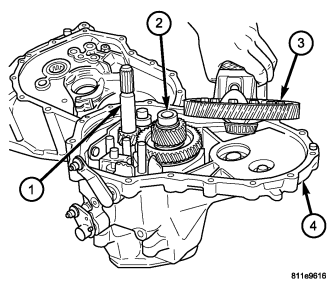

The T355 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.

CAUTION: The transaxle output shaft is serviced as a unit. No disassembly and reassembly is possible. Damage to the transaxle may result.

The sealant used to seal the transaxle case halves is MOPAR® Gasket Maker, Loctite® 518, or equivalent. The sealant used for the bearing end plate cover is MOPAR® RTV.

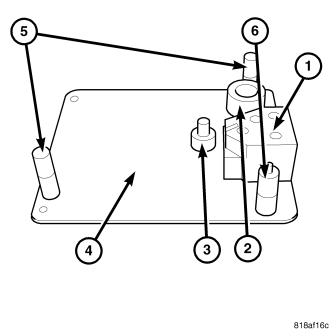

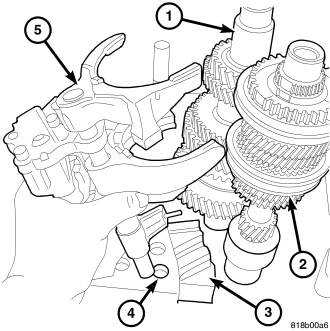

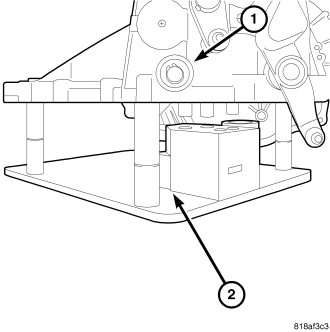

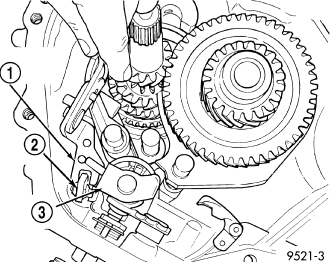

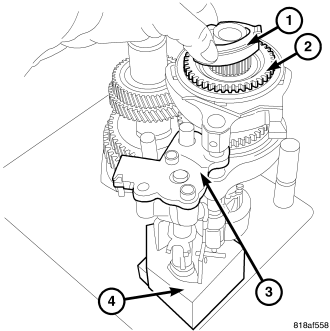

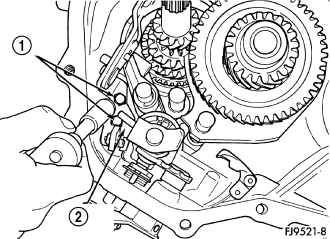

NOTE: Adaptor 9761-1 will slide shift blocker assembly and the 1-2 shift fork into the input and output shafts.

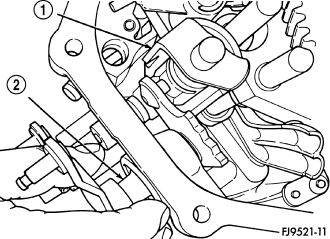

NOTE: One shift fork bolt may need to be installed to align assembly.

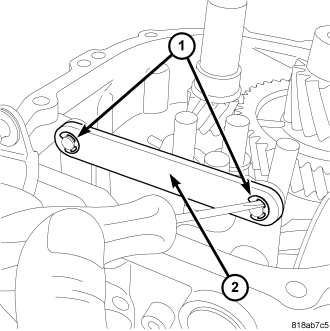

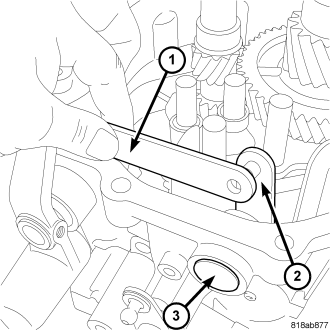

NOTE: Install new O-rings on shift blocker assembly bolts.

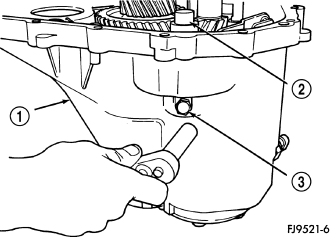

NOTE: Install a new O-ring on reverse idler shaft bolt.

BEARING ADJUSTMENT PROCEDURE

DIFFERENTIAL BEARING PRELOAD ADJUSTMENT

NOTE: True bearing turning–torque readings can be obtained only with the geartrain removed from the case.

NOTE: Position of dial indicator is for illustrative purposes only. The dial indicator should be parallel to T-Handle to obtain the most accurate reading.

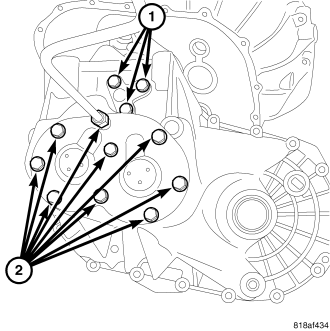

Once proper turning torque has been established, place gear case on the end plate. Draw a bead of MOPAR® Gasket Maker, Loctite® 518, or equivalent, on the flat surface of the case mating flange. Install clutch bellhousing onto gear case. Install and tighten case bolts to 25 N·m (225 in. lbs.).
