B2368–WINDOW WASHER MOTOR 1 CONTROL CIRCUIT LOW
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Window Washers activated.
- Set Condition:
- When the TIPM detects a LOW condition.
| Possible Causes |
| (W10) WASHER PUMP MOTOR CONTROL CIRCUIT SHORTED TO GROUND |
| WASHER PUMP MOTOR |
| TOTALLY INTEGRATED POWER MODULE |
Diagnostic Test
1.INTERMITTENT CONDITIONDoes the Scan Tool read: B2368–WINDOW WASHER MOTOR 1 CONTROL CIRCUIT LOW?
Yes
- Go To2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

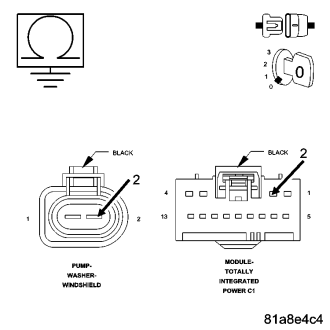

2.
Is the resistance below 5.0 ohms?
Yes
- Repair the (W10) Washer Pump Motor Control Output circuit for a short to ground.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To3
3.
Does the Scan Tool read: B2368–WINDOW WASHER MOTOR 1 CONTROL CIRCUIT LOW?
Yes
- Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Washer Pump Motor in accordance with the service information.
- Perform the BODY VERIFICATION TEST-VER1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
