*ALL DOORS FAIL TO LOCK
For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND |
| INSTRUMENT CLUSTER |
Theory of Operation
This test does not cover a secondary latch problem on a right hand drive vehicle.

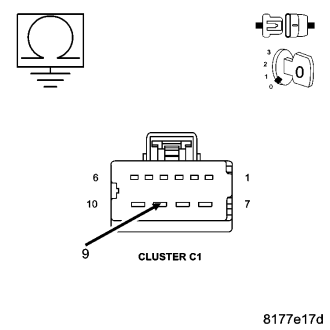

1. (P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND
Is the resistance below 5.0 ohms?
No
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Repair the (P33) Door Lock Driver wire for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
