*ALL PASSENGER DOORS FAIL TO LOCK AND UNLOCK

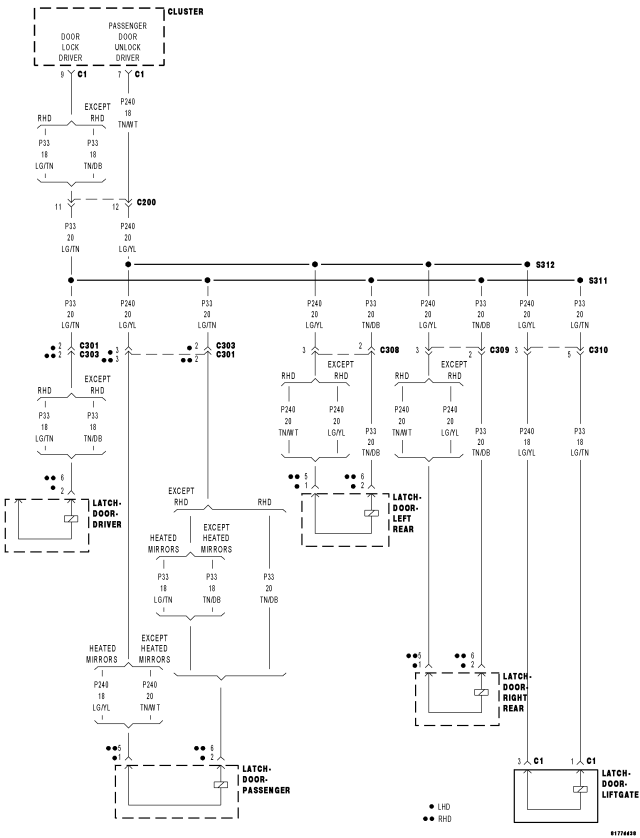

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| DTC's PRESENT |
| (P240) PASSENGER DOORS UNLOCK DRIVER WIRE OPEN |
| INSTRUMENT CLUSTER |
Theory of Operation
This test does not cover a secondary latch problem on a right hand drive vehicle.
Diagnostic Test
1.TEST FOR DIAGNOSTIC TROUBLE CODESDoes the scan tool display any Power Door Lock related DTC's?
No
- Go To 2
Yes
- Refer to the Table of Contents in this section to diagnose and repair the DTC's.
2. (P240) PASSENGER DOORS UNLOCK DRIVER WIRE OPEN

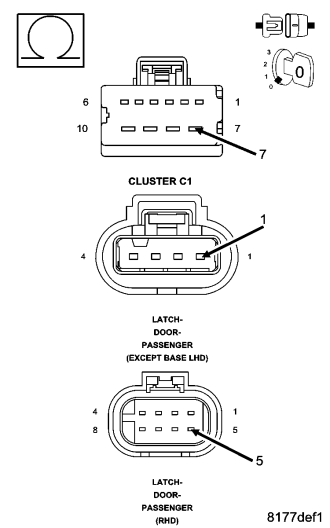

Is the resistance below 5.0 ohms?
Yes
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Repair the (P240) Passenger Doors Unlock Driver wire for an open.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
